Product CatalogPart Number
1154012
Manufacturer
Phoenix ContactDescription
FP 0 8/ 12-MV 8 65
Datasheet
DatasheetPackage
-
In Stock
69,474 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
1154012
1154012
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Surface Mount 12 position 0.031" (0.80mm)
Quick Inquiry
1154012
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Phoenix Contact |
| Series | COMBICON FP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.031" (0.80mm) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.541" (13.75mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Solder Retention |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1.7A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 1154011 | 1154013 | 1154014 | 1154015 |
| Manufacturer | Phoenix Contact | Phoenix Contact | Phoenix Contact | Phoenix Contact |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FP 0 8/ 80-MV-SH 7 15 | FP 0 8/ 20-MV 8 65 | FP 0 8/ 32-MV 8 65 | FP 0 8/ 52-MV 8 65 |
| Series | COMBICON FP | COMBICON FP | COMBICON FP | COMBICON FP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
1154004
Phoenix Contact
1154005
Phoenix Contact
1154007
Phoenix Contact
1154008
Phoenix Contact

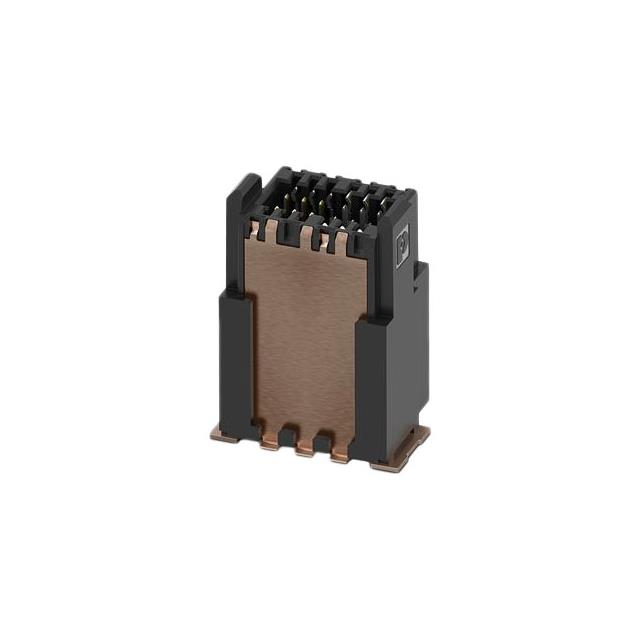

1154011
Phoenix Contact

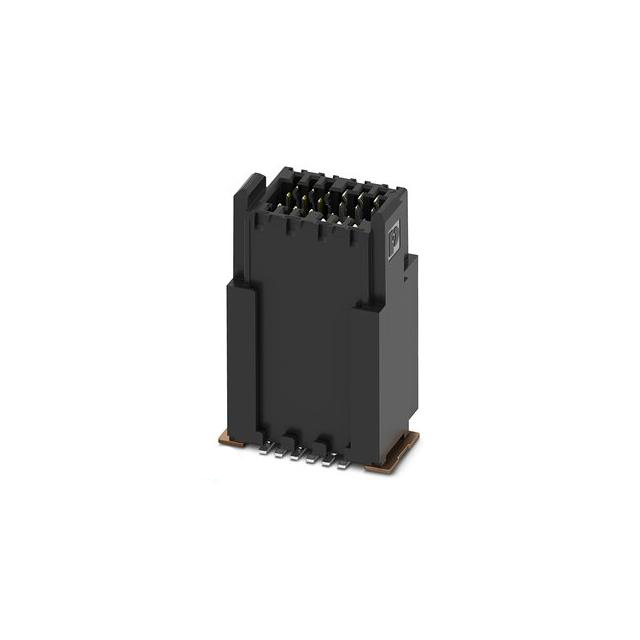

1154013
Phoenix Contact
1154014
Phoenix Contact
1154015
Phoenix Contact
1154016
Phoenix Contact

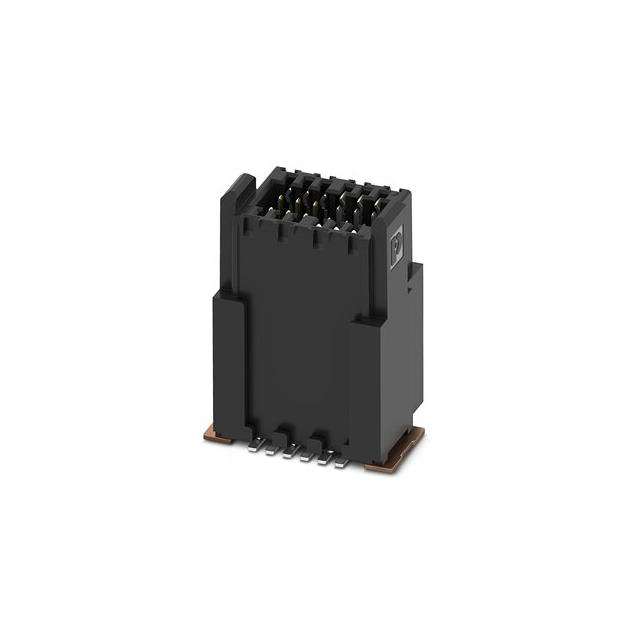

1154017
