11SM244-1

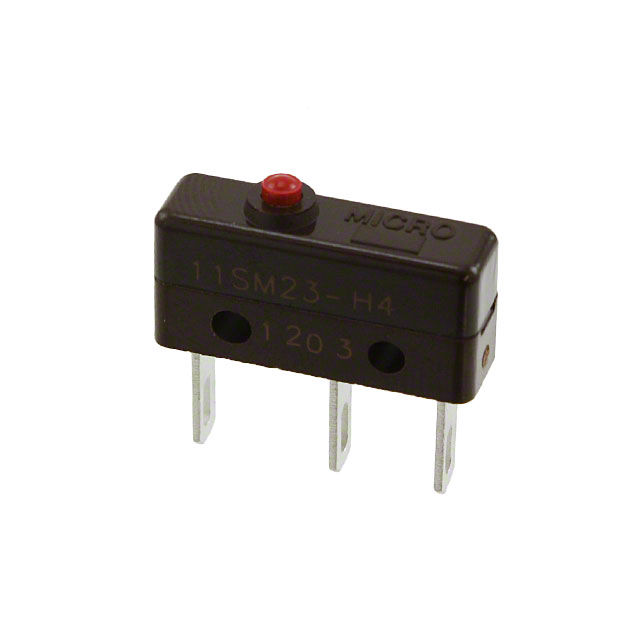

lmages are for reference only.11SM244-1
SWITCH SNAP ACTION SPDT 5A 250V
Datasheet-
83,017 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch SPDT Chassis Mount
11SM244-1
| Category | Switches - Limit Switches - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | SM |
| Packaging | Bulk |
| RoHS Status | |
| Base Product Number | 11SM2 |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 5A (AC), 300mA (DC) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Actuator Type | Round (Pin Plunger) |
| Mounting Type | Chassis Mount |
| Termination Style | Solder Lug |
| Ingress Protection | - |
| Electrical Life | - |
| Mechanical Life | 10,000,000 Cycles |
| Features | - |
| Operating Force | 141gf |
| Release Force | 28gf |
| Operating Position | 0.330" (8.4mm) |
| Pretravel | 0.020" (0.5mm) |
| Differential Travel | 0.004" (0.1mm) |
| Overtravel | 0.005" (0.13mm) |
| Operating Temperature | -55°C ~ 125°C |
| Product Attribute | |
|
|
 |
| Part Number | 11SM2440 | 11SM2442-T | 11SM2454 | 11SL40410 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | C&K |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SWITCH SNAP ACTION SPDT 5A 30V | SWITCH SNAP ACTION SPDT 5A 250V | SWITCH SNAP ACTION SPDT 5A 30V | SWITCH SNAP ACTION SPDT 10A 125V |
| Series | SM | SM | SM | SL |
| Packaging | Bulk | Bulk | Bulk | Box |
