120-FEP-311/03
lmages are for reference only.120-FEP-311/03
PLUG CONNECTOR, SCREWLESS CONNEC
Datasheet-
16,336 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
120-FEP-311/03
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | WECO Electrical Connectors Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Plug, Female Sockets |
| Number of Positions | 3 |
| Positions Per Level | 3 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 12A |
| Voltage - IEC | 250 V |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.2-4mm² |
| Color | Black |
| Operating Temperature | -40°C ~ 130°C |
| Contact Mating Finish | Tin |
| Features | Retention Latches (Non-Wire Side) |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | 10mm |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA), Nylon |
| Contact Tail Length | - |
| Insulation Height | 0.600" (15.24mm) |
| Current - UL | 16 A |
| Voltage - UL | 600 V |
| Product Attribute |  |
 |
 |
 |

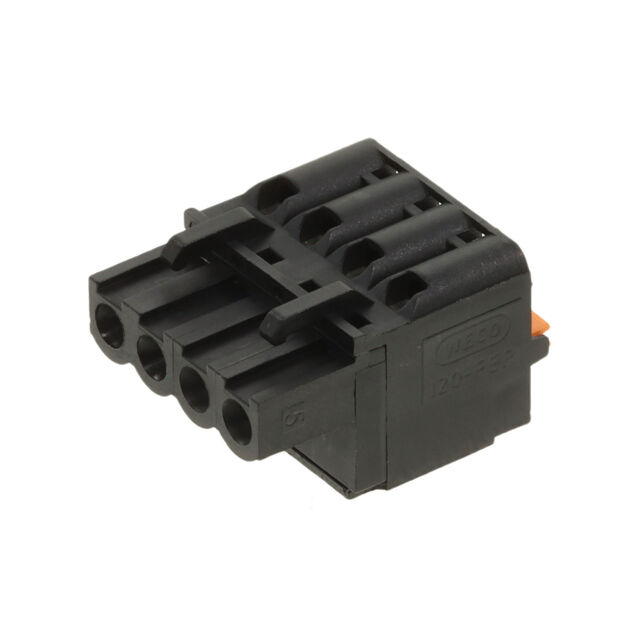

| Part Number | 120-FEP-311/04 | 120-A-111/02 | 120-A-111/03 | 120-A-111/04 |
| Manufacturer | WECO Electrical Connectors Inc. | WECO Electrical Connectors Inc. | WECO Electrical Connectors Inc. | WECO Electrical Connectors Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PLUG CONNECTOR, SCREWLESS CONNEC | PLUG; PLUG-IN SCREW; 2; 26-12; 1 | PLUG PLUG-IN SCREW; 3POS 5MM PIT | PLUG; PLUG-IN SCREW; 4; 26-12; 1 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
