120-ME-211/04

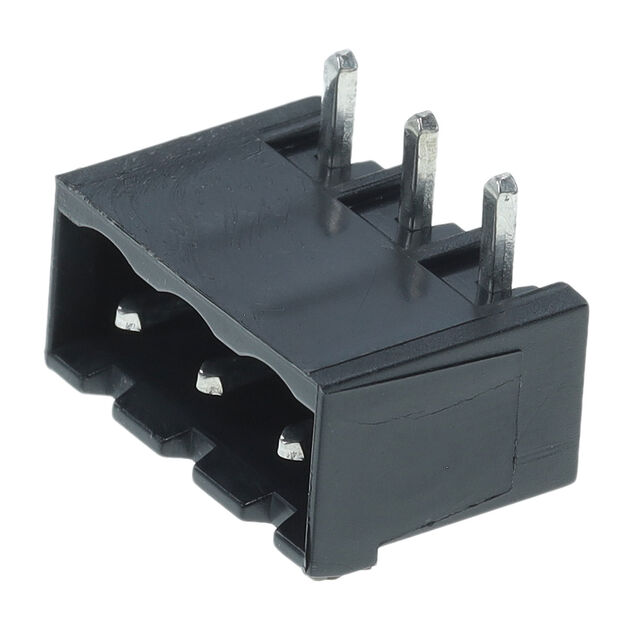

lmages are for reference only.120-ME-211/04
HEADER, PLUG IN DIRECTION PARALL
Datasheet-
56,446 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
120-ME-211/04
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | WECO Electrical Connectors Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | 90°, Right Angle |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | 16A |
| Voltage - IEC | 250 V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Black |
| Operating Temperature | -40°C ~ 130°C |
| Contact Mating Finish | Tin |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | - |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA), Nylon |
| Contact Tail Length | 0.157" (4.00mm) |
| Insulation Height | 1.122" (28.50mm) |
| Current - UL | 16 A |
| Voltage - UL | 300 V |
| Product Attribute |  |
|
|
 |
| Part Number | 120-ME-211/03 | 120-ME-221/03 | 120-ME-221/04 | 120-A-111/02 |
| Manufacturer | WECO Electrical Connectors Inc. | WECO Electrical Connectors Inc. | WECO Electrical Connectors Inc. | WECO Electrical Connectors Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | HEADER, PLUG IN DIRECTION PARALL | HEADER, PLUG IN DIRECTION VERTIC | HEADER, PLUG IN DIRECTION VERTIC | PLUG; PLUG-IN SCREW; 2; 26-12; 1 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
