1206SFP800FM/24-2

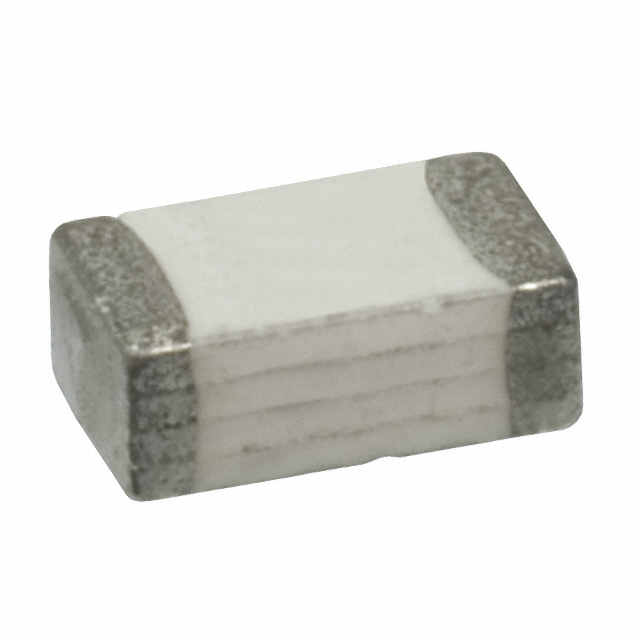

lmages are for reference only.1206SFP800FM/24-2
FUSE BOARD MOUNT 8A 24VDC 1206
Datasheet1206 (3216 Metric)
47,545 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8 A AC 24 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
1206SFP800FM/24-2
| Category | Circuit Protection - Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | SFP |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 8 A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 24 V |
| Response Time | - |
| Package / Case | 1206 (3216 Metric) |
| Breaking Capacity @ Rated Voltage | 80A |
| Melting I²t | 60.0 |
| Approval Agency | UL |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.126" L x 0.063" W x 0.046" H (3.20mm x 1.60mm x 1.17mm) |
| Base Product Number | - |
| DC Cold Resistance | 0.009 Ohms |
| Product Attribute |  |
|
|
|
| Part Number | 1206SFP800F/24-2 | 1206SFP100FM/63-2 | 1206SFP150FM/63-2 | 1206SFP200FM/63-2 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | FUSE BOARD MOUNT 8A 24VDC 1206 | FUSE BOARD MOUNT 1A 63VDC 1206 | FUSE BOARD MOUNT 1.5A 63VDC 1206 | FUSE BOARD MOUNT 2A 63VDC 1206 |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
