Product CatalogPart Number
121NQ035R-1
Manufacturer
SMC Diode SolutionsDescription
DIODE SCHOTTKY 35V 120A PRM1-1
Datasheet
DatasheetPackage
HALF-PAK
In Stock
35,275 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
121NQ035R-1
121NQ035R-1

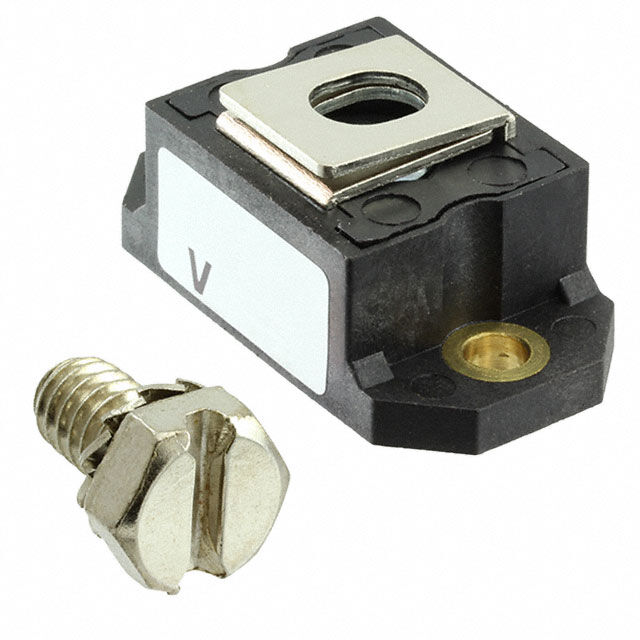

lmages are for reference only.Payment Methods
Delivery Services
Diode 35 V 120A Chassis Mount PRM1-1 (Half Pak Module)
Quick Inquiry
121NQ035R-1
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | SMC Diode Solutions |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 35 V |
| Current - Average Rectified (Io) | 120A |
| Voltage - Forward (Vf) (Max) @ If | 650 mV @ 120 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 10 mA @ 35 V |
| Capacitance @ Vr, F | 5200pF @ 5V, 1MHz |
| Mounting Type | Chassis Mount |
| Package / Case | HALF-PAK |
| Supplier Device Package | PRM1-1 (Half Pak Module) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | 121NQ |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | 121NQ035 | 121NQ035-1 | 121NQ040 | 121NQ040-1 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | SMC Diode Solutions | Vishay General Semiconductor - Diodes Division | SMC Diode Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | DIODE SCHOTTKY 35V 120A D-67 | DIODE SCHOTTKY 35V 120A PRM1-1 | DIODE SCHOTTKY 40V 120A D-67 | DIODE SCHOTTKY 40V 120A PRM1-1 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
