1230-015A-3S
lmages are for reference only.1230-015A-3S
SENSOR 15PSIA 0.13" 0.1V
Datasheet8-DIP Module
91,225 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.13" (3.18mm) Tube 0 mV ~ 100 mV 8-DIP Module
1230-015A-3S
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | TE Connectivity Measurement Specialties |
| Series | 1230 |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Base Product Number | 1230 |
| Applications | Board Mount |
| Pressure Type | Absolute |
| Operating Pressure | 15PSI (103.42kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 100 mV |
| Accuracy | ±0.1% |
| Voltage - Supply | - |
| Port Size | Male - 0.13" (3.18mm) Tube |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 45PSI (310.26kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

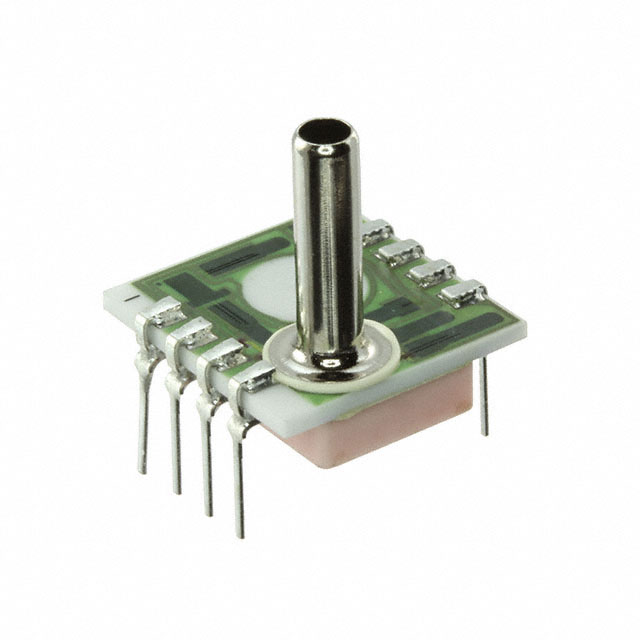

| Part Number | 1230-015A-1L | 1230-015A-1S | 1230-015A-3L | 1230-002D-3N |
| Manufacturer | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | SENSOR 15PSIA 0.13" 0.1V | SENSOR 15PSIA 0.13" 0.1V | SENSOR 15PSIA 0.13" 0.1V | 2PSID BOARD MNT PRESSURE SENSOR |
| Series | 1230 | 1230 | 1230 | * |
| Packaging | Tray | Box |
