124019322112A
lmages are for reference only.124019322112A
USB TYPE C, RECEPTACLE, MIDDLE M
Datasheet-
38,796 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
124019322112A
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Connector Type | USB-C (USB TYPE-C) |
| Number of Contacts | 24 |
| Gender | Receptacle |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Mounting Type | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle |
| Mounting Feature | Horizontal, Mid Mount |
| Termination | Solder |
| Features | - |
| Ingress Protection | IPX3 - Waterproof |
| Operating Temperature | -40°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 6A |
| Voltage - Rated | 30VAC |
| Mating Cycles | 10000 |
| Shielding | - |
| Contact Finish | Gold |
| Shell/Shielding Material | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | 12401932 |
| Product Attribute |  |
 |
 |
 |

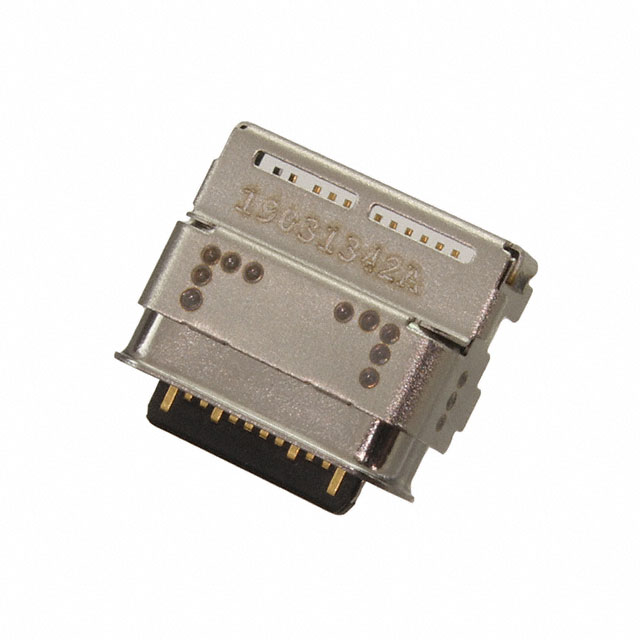

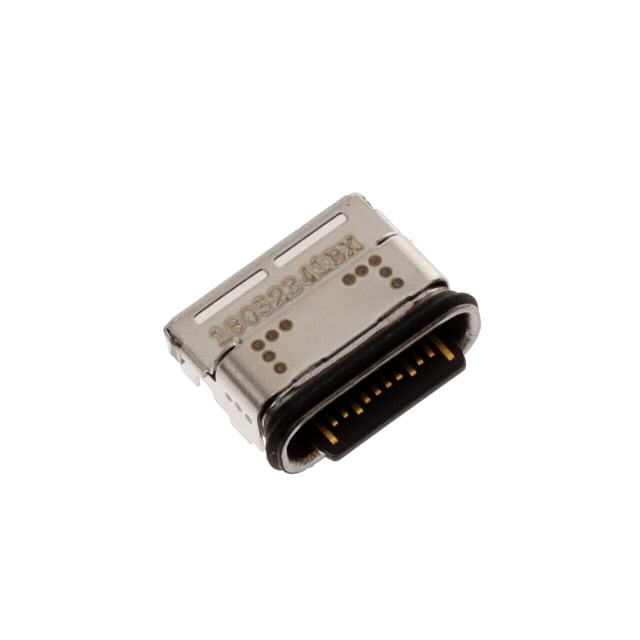

| Part Number | 124019362112A | 124019372112A | 12401544E4#2A | 12401548E4#2A |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | USB TYPE C, RECEPTACLE, TOP MOUN | USB TYPE C, RECEPTACLE, TOP MOUN | CONN RCPT USB3.1 TYPEC 24POS SMD | CONN RCP USB3.1 TYPEC 24P SMD RA |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
