130-A-021/02

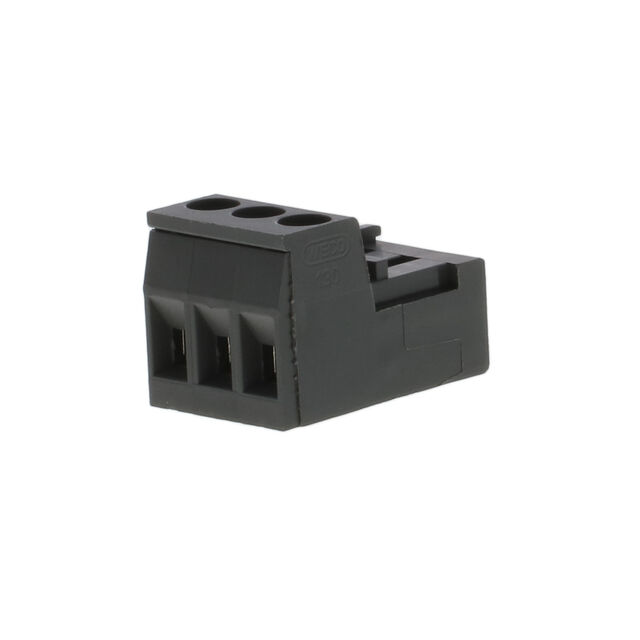

lmages are for reference only.130-A-021/02
PLUG IN CONNECTOR IN 5.00 MM PIT
Datasheet-
32,072 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
130-A-021/02
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | WECO Electrical Connectors Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Plug, Female Sockets |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Pressure Clip |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Wire Gauge or Range - AWG | 10-26 AWG |
| Wire Gauge or Range - mm² | 2.5mm² |
| Color | Gray |
| Operating Temperature | -40°C ~ 100°C |
| Contact Mating Finish | Tin |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | M3 |
| Torque - Screw | 0.5 Nm (4.4 Lb-In) |
| Wire Strip Length | 7mm |
| Contact Material | Bronze |
| Housing Material | Polyamide (PA), Nylon |
| Contact Tail Length | - |
| Insulation Height | 0.591" (15.00mm) |
| Current - UL | 22 A |
| Voltage - UL | 300 V |
| Product Attribute |  |
 |
|
|
| Part Number | 130-A-021/03 | 13039.1 | 13040.1 | 13041.1 |
| Manufacturer | WECO Electrical Connectors Inc. | Conta-Clip, Inc. | Conta-Clip, Inc. | Conta-Clip, Inc. |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | PLUG IN CONNECTOR IN 5.00 MM PIT | PLUG-IN CONNECTOR | PLUG-IN CONNECTOR | PLUG-IN CONNECTOR |
| Series | - | PKBZ | PKBZ | PKBZ |
| Packaging | Bulk | Bulk | Bulk | Bulk |
