1410124-1
lmages are for reference only.1410124-1
CONN PLUG MULTIGIG 256P EDGE MNT
Datasheet-
50,789 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
256 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black MULTIGIG, Full, Left End
1410124-1
| Category | Connectors, Interconnects - Backplane Connectors - Specialized |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | MULTIGIG RT2 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Connector Usage | Daughtercard |
| Connector Type | Plug, Male Blades |
| Connector Style | MULTIGIG, Full, Left End |
| Number of Positions | 256 |
| Number of Positions Loaded | All |
| Pitch | 0.071" (1.80mm) |
| Number of Rows | 16 |
| Number of Columns | 16 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Termination | Solder |
| Contact Layout, Typical | - |
| Features | - |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Color | Black |
| Current Rating (Amps) | - |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature | -55°C ~ 105°C |
| Voltage Rating | 50V |
| Base Product Number | 1410124 |
| Product Attribute | |
|
|
|
| Part Number | 1410124-2 | 1410123-1 | 1410125-1 | 1410125-2 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity AMP Connectors | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN PLUG MULTIGIG 256P EDGE MNT | CONN PLUG MULTIGIG 256P EDGE MNT | CONN PLUG MULTIGIG 256P EDGE MNT | CONN PLUG MULTIGIG 256P EDGE MNT |
| Series | MULTIGIG RT2 | MULTIGIG RT2 | MULTIGIG RT2 | MULTIGIG RT2 |
| Packaging | Bulk | Bulk | Bulk | Bulk |

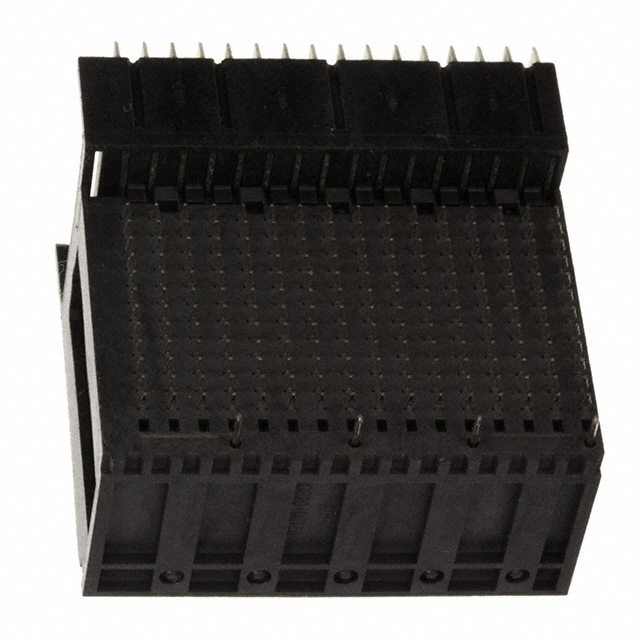

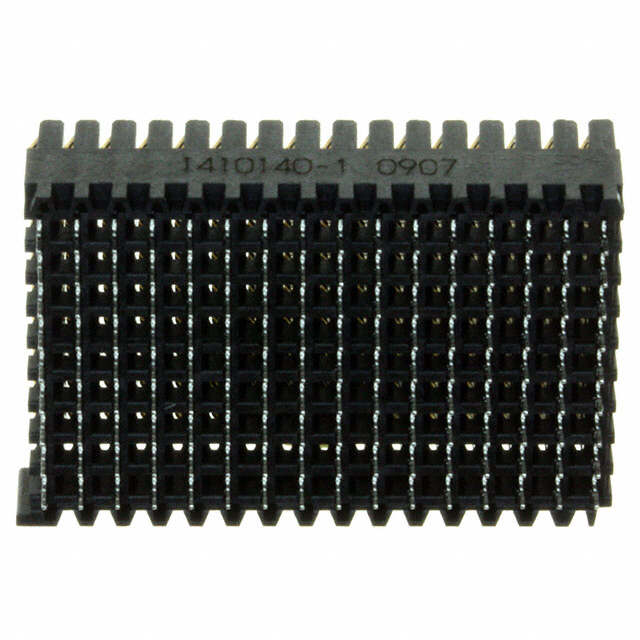

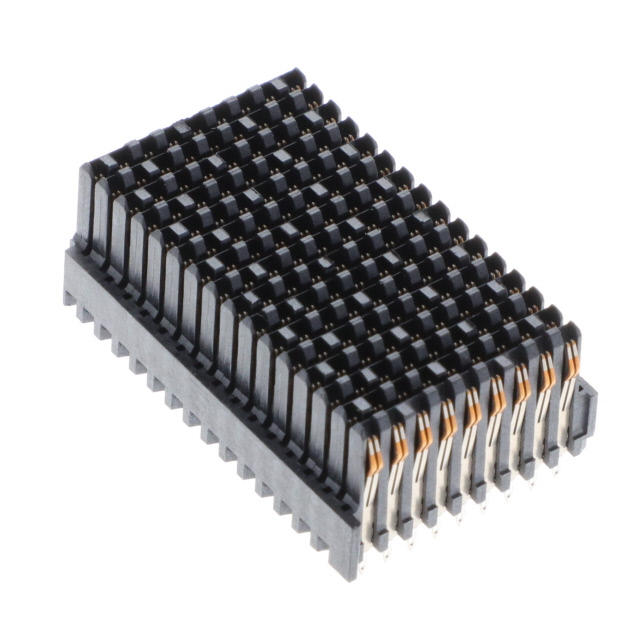

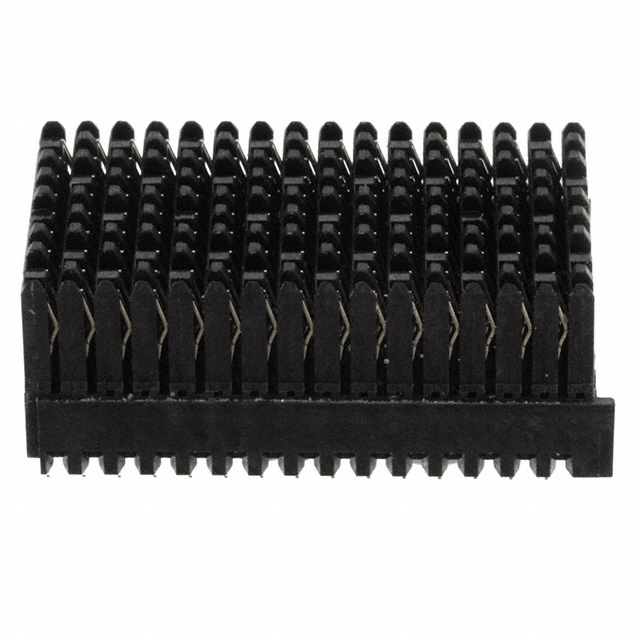

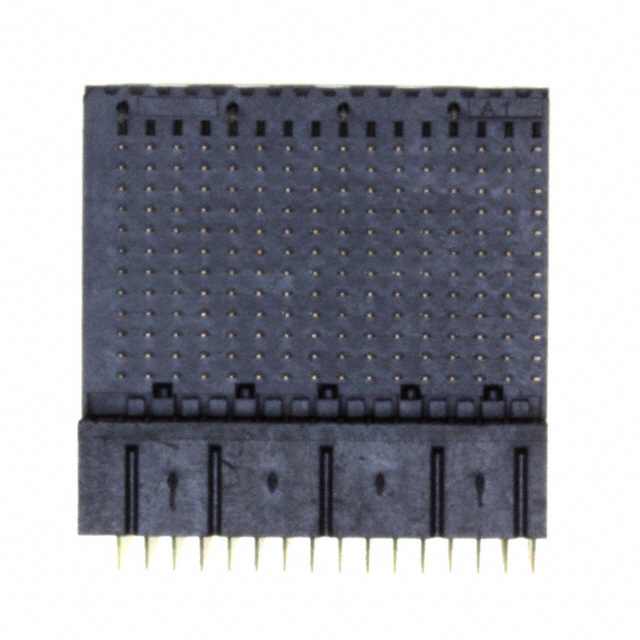

Recommended Products
