1462039-3

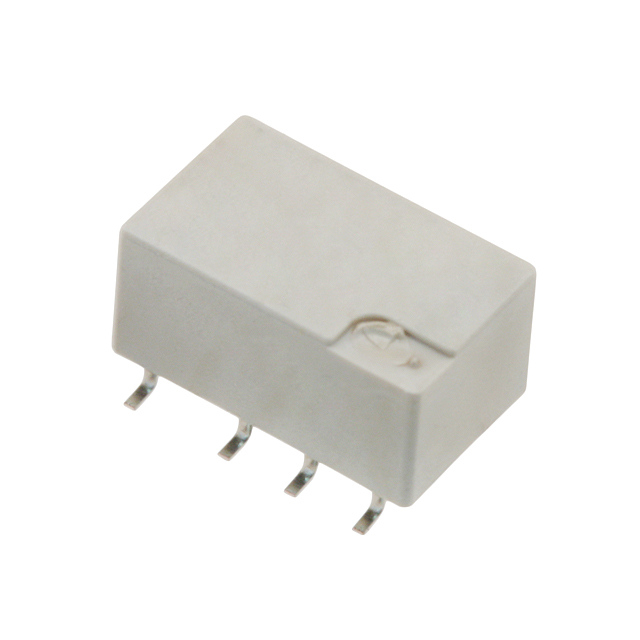

lmages are for reference only.1462039-3
RELAY TELECOM DPDT 2A 4.5V
Datasheet-
98,905 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Telecom Relay DPDT (2 Form C) Surface Mount
1462039-3
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | IM, AXICOM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Coil Voltage | 4.5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Load - Max Switching | 500VA, 440W |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Gull Wing |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 3.6 VDC |
| Must Release Voltage | 0.45 VDC |
| Operate Time | 3 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Palladium (Pd), Ruthenium (Ru), Gold (Au) |
| Approval Agency | UR |
| Relay Type | Telecom |
| Grade | - |
| Qualification | - |
| Base Product Number | 1462039 |
| Coil Current | 23.2 mA |
| Coil Resistance | 194 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | 1462039-2 | 1462039-4 | 1462039-5 | 1462039-6 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY TELECOM DPDT 2A 24V | RELAY TELECOM DPDT 2A 5V | RELAY TELECOM DPDT 2A 12V | RELAY TELECOM DPDT 2A 24V |
| Series | IM, AXICOM | IM, AXICOM | IM, AXICOM | IM, AXICOM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
