Product CatalogPart Number
151210-7322-TH
Manufacturer
3MDescription
CONN HEADER R/A 10POS 2MM
Datasheet
DatasheetPackage
-
In Stock
59,694 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
151210-7322-TH
151210-7322-TH
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)
Quick Inquiry
151210-7322-TH
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | 3M |
| Series | 1512 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.130" (3.30mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | - |
| Insulation Height | 0.165" (4.20mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Applications | - |
| Base Product Number | 151210 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 151210-7322-RB | 151210-7422-RB | 151210-7422-TB | 15120062401000 |
| Manufacturer | 3M | 3M | 3M | HARTING |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ||
| Description | CONN HEADER R/A 10POS 2MM | CONN HEADER R/A 10POS 2MM | CONN HEADER R/A 10POS 2MM | CONN HEADER SMD 6POS 1.27MM |
| Series | 1512 | 1512 | 1512 | har-flex® |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
151210-2420-RB
3M

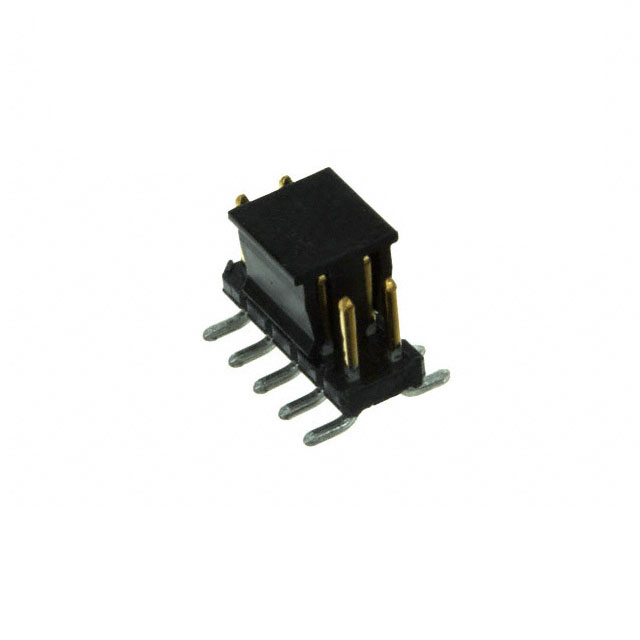

151210-2420-RB-WC
3M
151210-2420-TB
3M

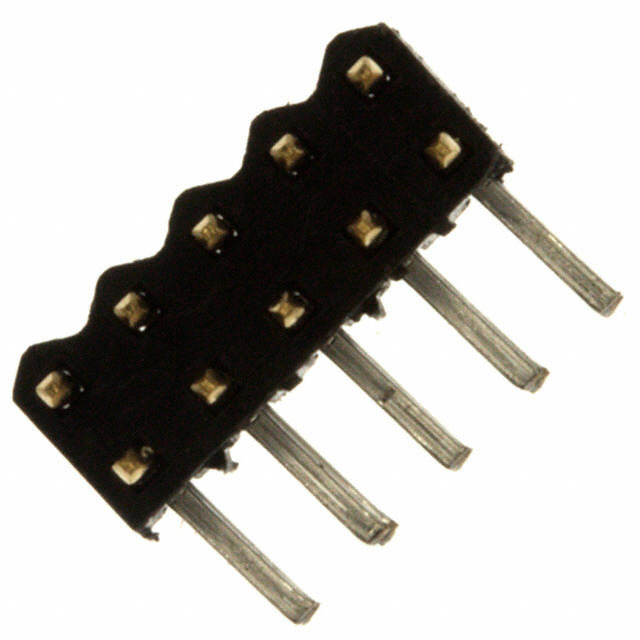

151210-7322-RB
3M

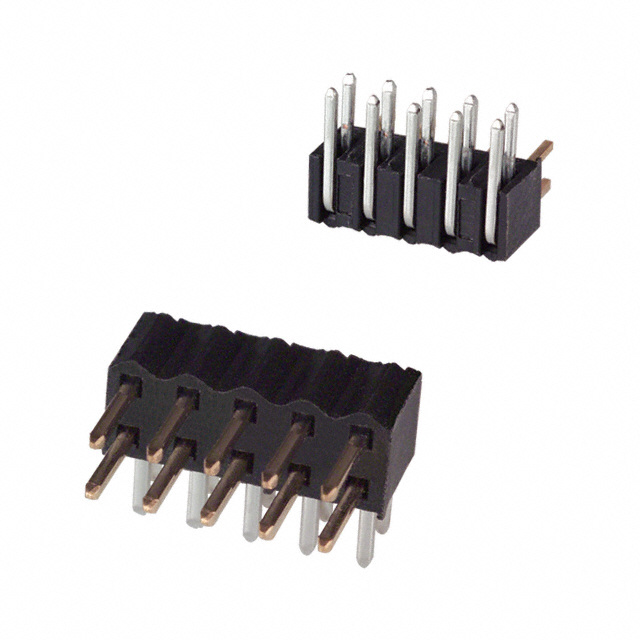

151210-7422-RB
3M
151210-7422-TB
3M

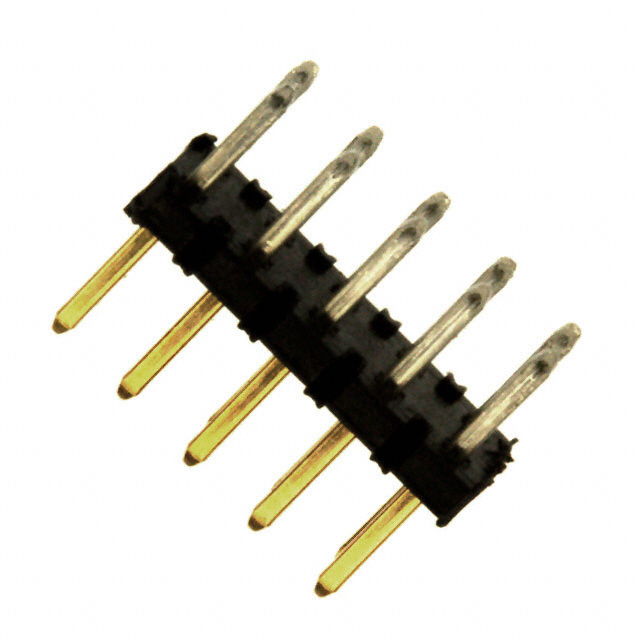

151210-8322-RB
3M
151210-8322-TB
3M
151210-8422-RB
3M

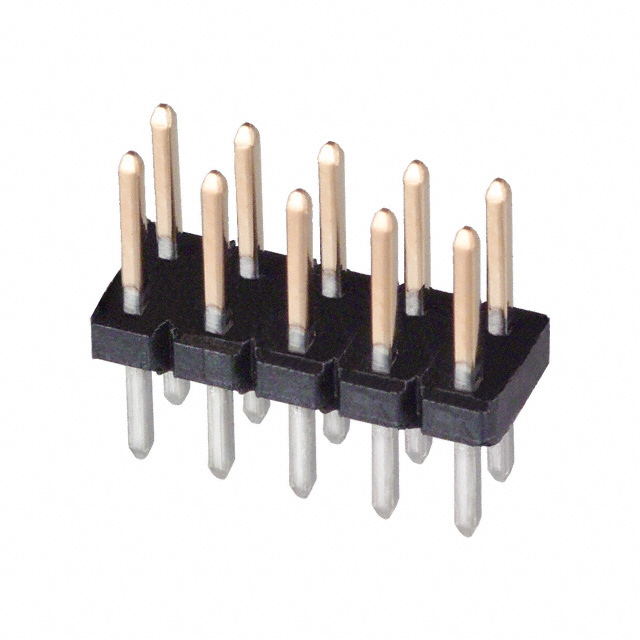

151210-8422-TB
3M

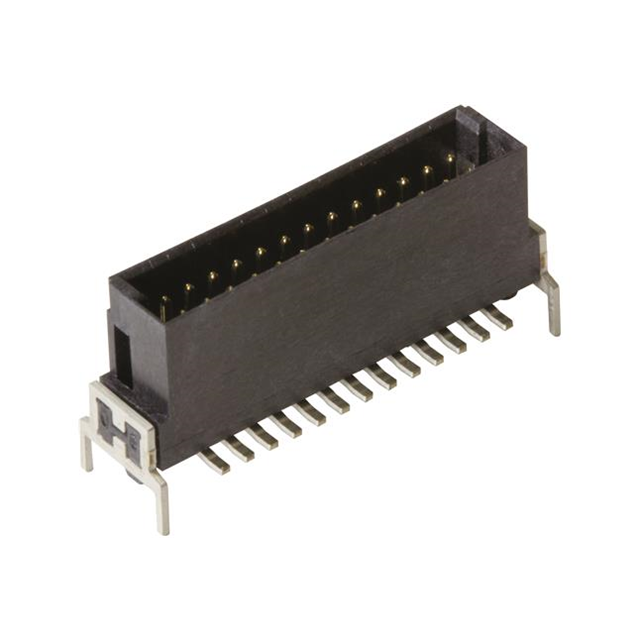

15121002401000
HARTING

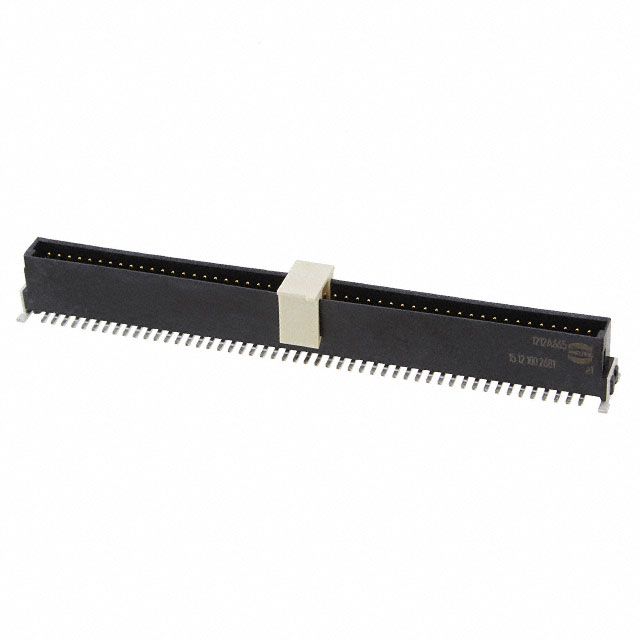

15121002601000
HARTING

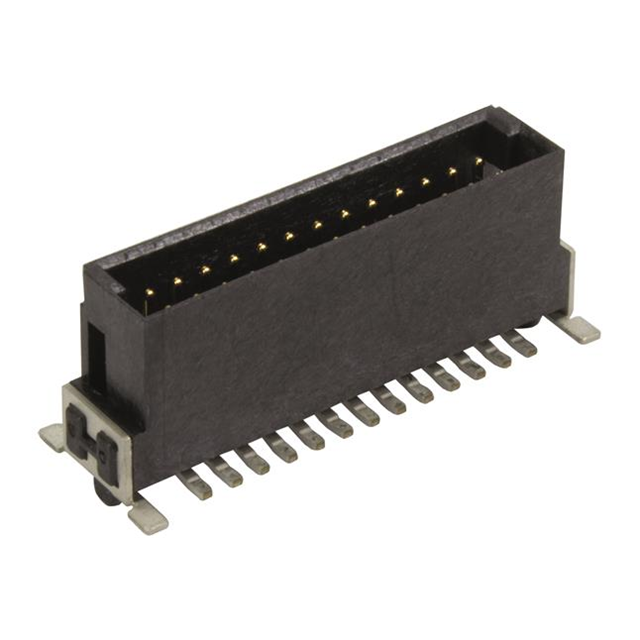

15121002601333
HARTING
151212-2420-RB
3M
151212-2420-TH
3M
151212-7422-RB
3M

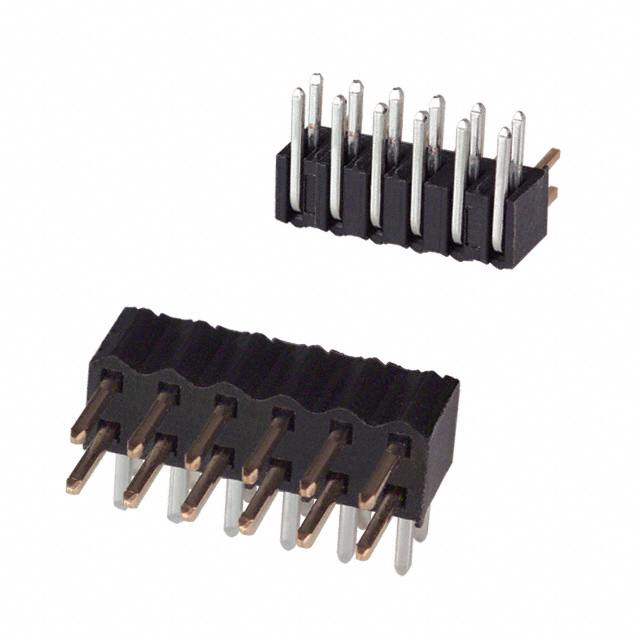

151212-7422-TB
