1571610-2
lmages are for reference only.1571610-2
SWITCH TACTILE SPST-NO 0.05A 24V
Datasheet-
28,234 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
1571610-2
| Category | Switches - Tactile Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | FSMRAJS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Type | Standard |
| Mounting Type | Through Hole, Right Angle |
| Actuator Height off PCB, Vertical | - |
| Actuator Length, Right Angle | 3.85mm |
| Actuator Orientation | Side Actuated |
| Termination Style | PC Pin |
| Outline | 6.90mm x 6.80mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 160gf |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Operating Temperature | -35°C ~ 85°C |
| Actuator Material | Polyamide (PA46), Nylon 4/6 |
| Switch Travel | 0.35mm |
| Mechanical Life | 1,000,000 Cycles |
| Base Product Number | 1571610 |
| Product Attribute |  |
 |
|
|

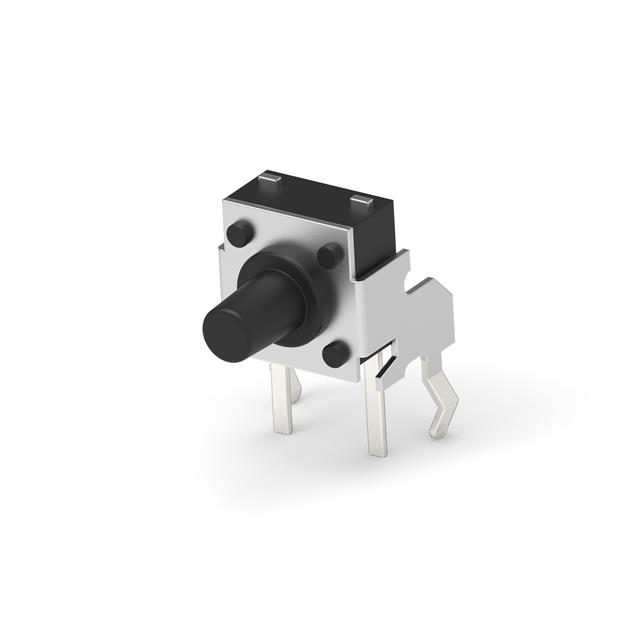

| Part Number | 1571610-1 | 1571611-2 | 1571185-1 | 1571217-1 |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | SWITCH TACTILE SPST-NO 0.05A 24V | SWITCH TACTILE SPST-NO 0.05A 12V | SWITCH TACTILE SPST-NO 0.05A 24V |
| Series | FSMRAJS | - | FSMCD | - |
| Packaging | Bulk | Tape & Reel (TR) | Bulk | Bag |
