Product CatalogPart Number
15754162601000
Manufacturer
HARTINGDescription
HAR-FLEX HYBRID ANGLED MALE, 6P+
Datasheet
DatasheetPackage
-
In Stock
58,866 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
15754162601000
15754162601000
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Surface Mount, Right Angle 20 (16 + 4 Power) position
Quick Inquiry
15754162601000
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | HARTING |
| Series | har-flex® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Blade; Male Pin |
| Pitch - Mating | - |
| Number of Positions | 20 (16 + 4 Power) |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.167" (4.24mm) |
| Contact Shape | Rectangular, Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide, Solder Retention |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 22.5A |
| Voltage Rating | 50VAC, 120VDC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 15758362601000 | 15758362701000 | TSM-113-01-F-DV-LC-P-TR | HMTSW-112-10-G-D-520-RA |
| Manufacturer | HARTING | HARTING | Samtec Inc. | Samtec Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

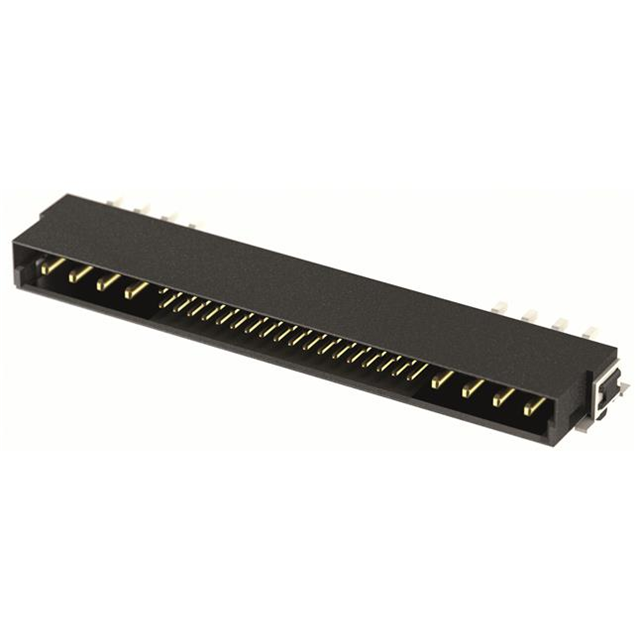

| Description | HAR-FLEX HYBRID ANGLED MALE, 2P+ | HAR-FLEX HYBRID ANGLED MALE, 2P+ | CONN HEADER SMD 26POS 2.54MM | .100" HIGH-TEMP VARIABLE POST HE |
| Series | har-flex® | har-flex® | TSM | Flex Stack, HMTSW |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
