15BJ120AH
lmages are for reference only.15BJ120AH
TVS DIODE 120VWM UNI
DatasheetDO-221AA, SMB Flat Leads
64,499 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
193V Clamp 7.8A Ipp Tvs Diode Surface Mount SMBF
15BJ120AH
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | 15BJxxH |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 120V |
| Voltage - Breakdown (Min) | 133V |
| Voltage - Clamping (Max) @ Ipp | 193V |
| Current - Peak Pulse (10/1000µs) | 7.8A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AA, SMB Flat Leads |
| Supplier Device Package | SMBF |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

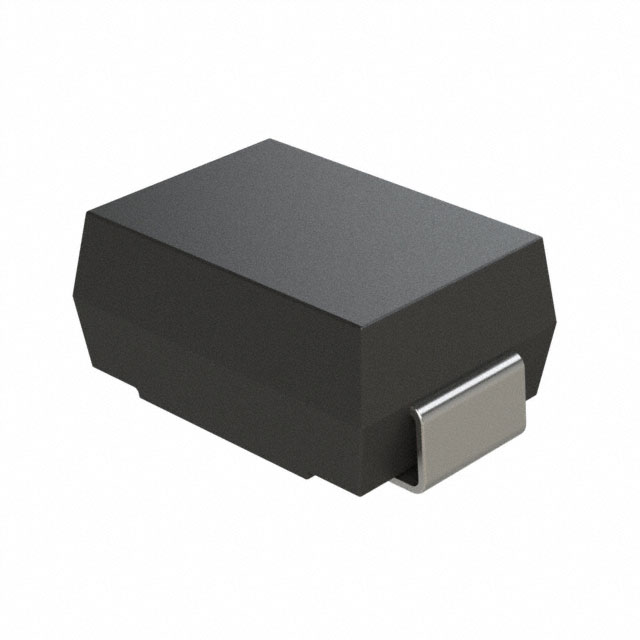

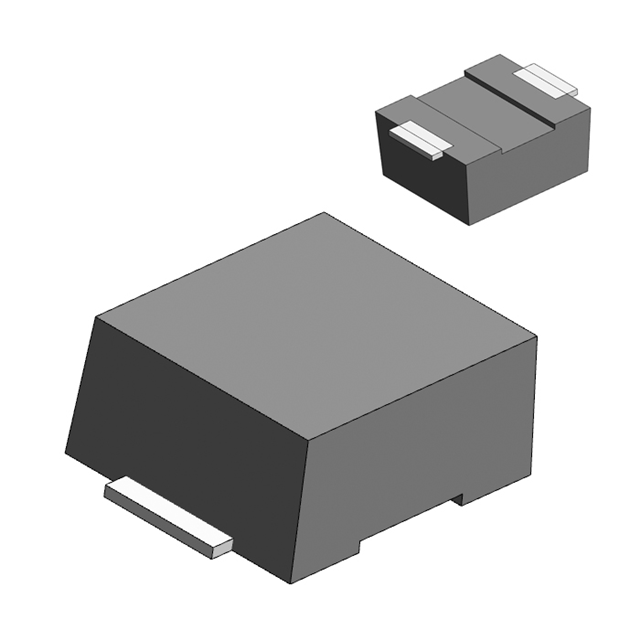

| Part Number | 15BJ120A | 15BJ120CA | 15BJ120CAH | 15BJ12A |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | TVS DIODE 120VWM 193VC SMBF | TVS DIODE 120VWM 193VC SMBF | TVS DIODE 120VWM BI | TVS DIODE 12VWM 19.9VC SMBF |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
