15BJ70CA

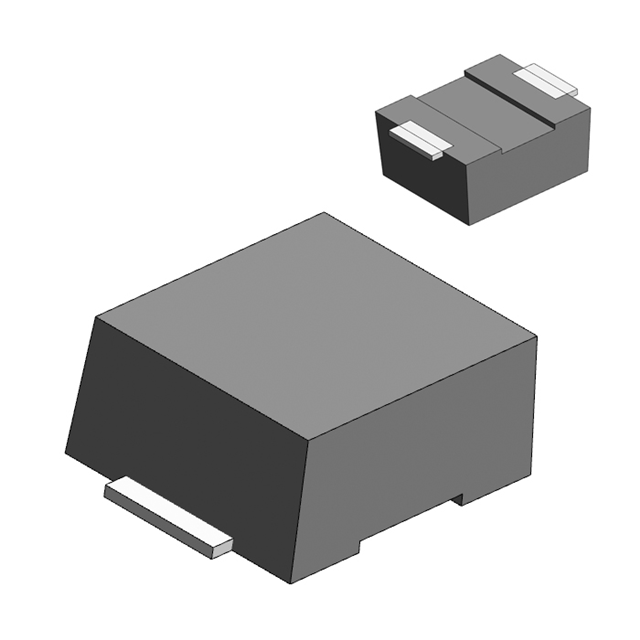

lmages are for reference only.15BJ70CA
TVS DIODE 70VWM 113VC SMBF
DatasheetDO-221AA, SMB Flat Leads
70,230 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
113V Clamp 13.3A Ipp Tvs Diode Surface Mount SMBF
15BJ70CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | 15BJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 70V |
| Voltage - Breakdown (Min) | 77.8V |
| Voltage - Clamping (Max) @ Ipp | 113V |
| Current - Peak Pulse (10/1000µs) | 13.3A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AA, SMB Flat Leads |
| Supplier Device Package | SMBF |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
 |

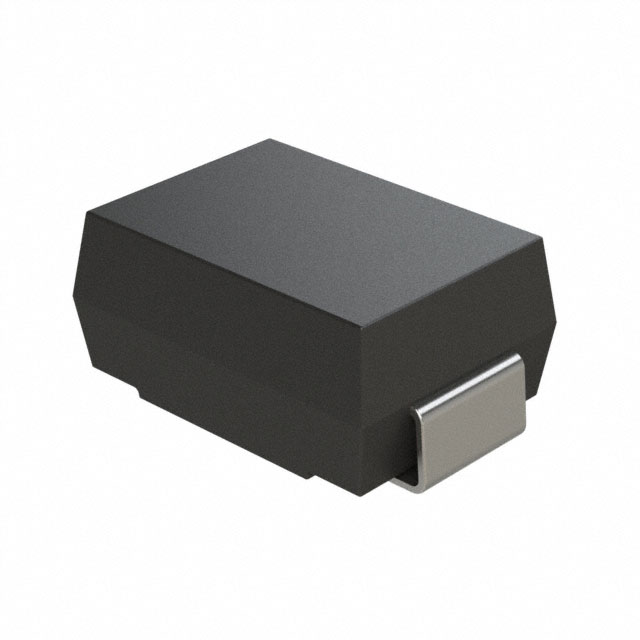

| Part Number | 15BJ70CAH | 15BJ7-0A | 15BJ7-0AH | 15BJ7-0CA |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | TVS DIODE 70VWM BI | TVS DIODE 70VWM 113VC SMBF | TVS DIODE 7VWM UNI | TVS DIODE 7VWM 12VC SMBF |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
