Product CatalogPart Number
15DCPW_15S4
Manufacturer
GAPTEC ElectronicDescription
ISOLATED MODULE DC DC CONVERTERS
Datasheet
DatasheetPackage
5-DIP Module
In Stock
17,169 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
15DCPW_15S4
15DCPW_15S4

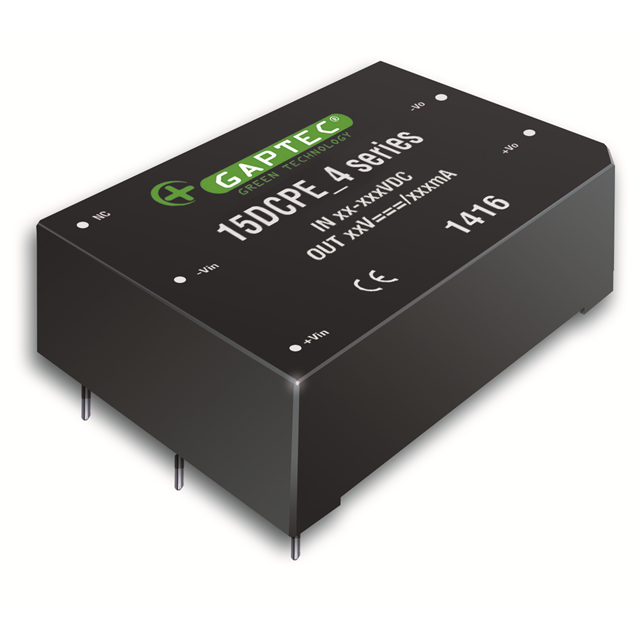

lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 15V 1A 200V - 1500V Input
Quick Inquiry
15DCPW_15S4
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | GAPTEC Electronic |
| Series | 15DCPW_4 (15W) |
| Packaging | Retail Package |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 200V |
| Voltage - Input (Max) | 1500V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Efficiency | 72% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 4.92" L x 2.95" W x 1.57" H (125.0mm x 75.0mm x 40.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 4 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 15DCPW_12S4 | 15DCPE_12S4 | 15DCPE_15S4 | 15DCPE_24S4 |
| Manufacturer | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS |
| Series | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic |
| Packaging | Retail Package | Retail Package | Retail Package | Retail Package |
