Product CatalogPart Number
15KP20A-TP
Manufacturer
Micro Commercial CoDescription
Interface
Datasheet
DatasheetPackage
R-6, Axial
In Stock
44,040 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
15KP20A-TP
15KP20A-TP
lmages are for reference only.Payment Methods
Delivery Services
34.3V Clamp 437A Ipp Tvs Diode Through Hole R-6
Quick Inquiry
15KP20A-TP
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 20V |
| Voltage - Breakdown (Min) | 22.2V |
| Voltage - Clamping (Max) @ Ipp | 34.3V |
| Current - Peak Pulse (10/1000µs) | 437A |
| Power - Peak Pulse | 15000W (15kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | R-6, Axial |
| Supplier Device Package | R-6 |
| Base Product Number | 15KP20 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

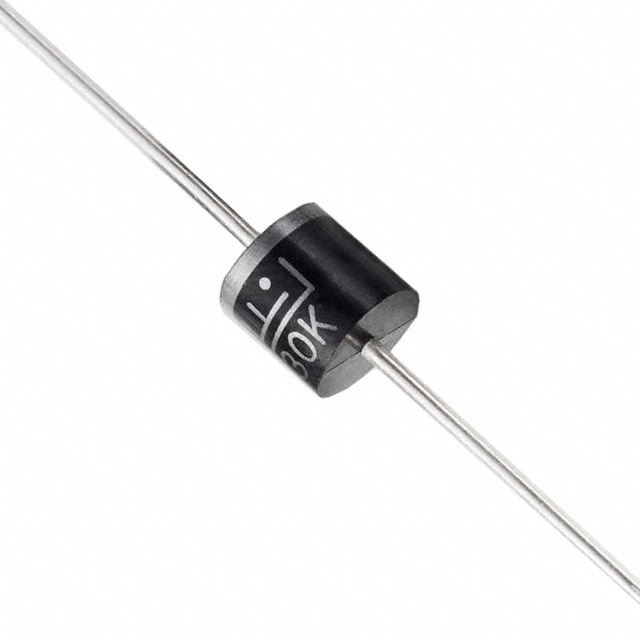

| Part Number | 15KP20A | 15KP20A | 15KP20AL-TP | 15KP100 |
| Manufacturer | MDE Semiconductor Inc | Littelfuse Inc. | Micro Commercial Co | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE UP 20VRWM 34.3VC | TVS DIODE 20VWM 34.3VC P600 | TVS,R-6 | TVS DIODE 100VWM 170.1VC P600 |
| Series | MDE Semiconductor Inc | Littelfuse Inc. | Micro Commercial Co | Littelfuse Inc. |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Bulk |
