Product CatalogPart Number
15KPA220CA
Manufacturer
MDE Semiconductor IncDescription
TVS DIODE BP 220VRWM 356.0VC
Datasheet
DatasheetPackage
P600, Axial
In Stock
72,644 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
15KPA220CA
15KPA220CA
lmages are for reference only.Payment Methods
Delivery Services
356V Clamp 42A Ipp Tvs Diode Through Hole P600
Quick Inquiry
15KPA220CA
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | MDE Semiconductor Inc |
| Series | 15KPA |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 220V |
| Voltage - Breakdown (Min) | 245.7V |
| Voltage - Clamping (Max) @ Ipp | 356V |
| Current - Peak Pulse (10/1000µs) | 42A |
| Power - Peak Pulse | 15000W (15kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | P600, Axial |
| Supplier Device Package | P600 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|

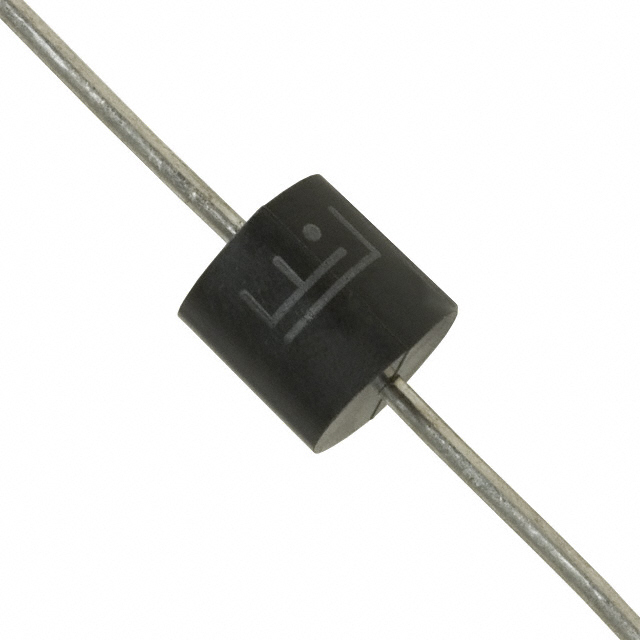

| Part Number | 15KPA220C | 15KPA220C-B | 15KPA220CA | 15KPA220CA |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | SMC Diode Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 220VWM 373.8VC P600 | TVS DIODE 220VWM 373.8VC P600 | TVS DIODE 220VWM 356VC P600 | TVS DIODE 220VWM 428.6VC P600 |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | SMC Diode Solutions |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
