170M3691

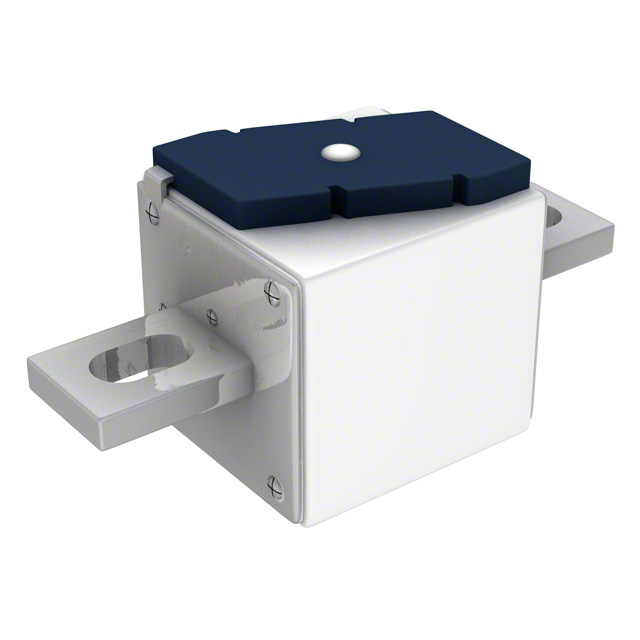

lmages are for reference only.170M3691
FUSE SQUARE 100A 1.3KVAC RECT
DatasheetRectangular, Blade
41,370 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100A 1.3 kVAC Fuse Square Bolt Mount
170M3691
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Bussmann Electrical Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Square |
| Current Rating (Amps) | 100A |
| Voltage Rating - AC | 1.3 kVAC |
| Response Time | - |
| Applications | Electrical, Industrial |
| Features | Indicating |
| Class | - |
| Approval Agency | CSA, UR |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 100kA |
| Package / Case | Rectangular, Blade |
| Size / Dimension | 2.913" L x 1.772" W x 2.323" H (74.00mm x 45.00mm x 59.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | - |
| Grade | - |
| Qualification | - |
| Melting I²t | 750.0 |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 170M3690 | 170M3692 | 170M3693 | 170M3694 |
| Manufacturer | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FUSE SQUARE 80A 1.3KVAC RECT | FUSE SQUARE 125A 1.3KVAC RECT | FUSE SQUARE 160A 1.3KVAC RECT | FUSE SQUARE 200A 1.3KVAC RECT |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
