170M4697
lmages are for reference only.170M4697
FUSE SQUARE 630A 1.3KVAC RECT
DatasheetRectangular, Blade
98,478 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
630A 1.3 kVAC Fuse Square Bolt Mount
170M4697
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Bussmann Electrical Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Square |
| Current Rating (Amps) | 630A |
| Voltage Rating - AC | 1.3 kVAC |
| Response Time | - |
| Applications | Electrical, Industrial |
| Features | Indicating |
| Class | - |
| Approval Agency | CSA, UR |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 100kA |
| Package / Case | Rectangular, Blade |
| Size / Dimension | 2.913" L x 2.087" W x 2.717" H (74.00mm x 53.00mm x 69.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | - |
| Grade | - |
| Qualification | - |
| Melting I²t | 130000.0 |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

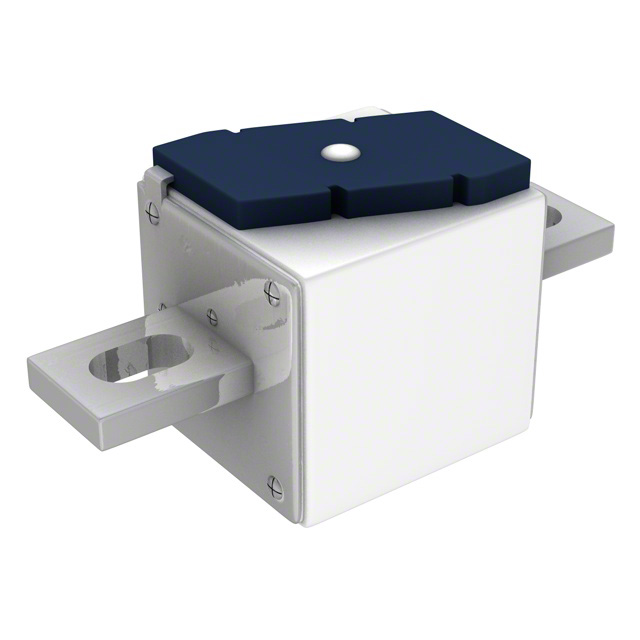

| Part Number | 170M4690 | 170M4691 | 170M4692 | 170M4693 |
| Manufacturer | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FUSE BUSS SEMEVRON FUSE | FUSE SQUARE 315A 1.3KVAC RECT | FUSE SQUARE 350A 1.3KVAC RECT | FUSE SQUARE 400A 1.3KVAC RECT |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
