Product CatalogPart Number
1714886
Manufacturer
Phoenix ContactDescription
CONN RECEPTACLE 1.27MM 50POS SMD
Datasheet
DatasheetPackage
-
In Stock
34,736 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
1714886
1714886
lmages are for reference only.Payment Methods
Delivery Services
50 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Quick Inquiry
1714886
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Phoenix Contact |
| Series | COMBICON FP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.356" (9.05mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 10.8mm, 12.3mm |
| Ingress Protection | - |
| Features | Board Guide, Solder Retention |
| Current Rating (Amps) | 1.4A |
| Voltage Rating | 500V |
| Applications | - |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Contact Shape | Square |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Post | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 1714881 | 1714882 | 1714884 | 1714885 |
| Manufacturer | Phoenix Contact | Phoenix Contact | Phoenix Contact | Phoenix Contact |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | CONN RECEPTACLE 1.27MM 20POS SMD | CONN RECEPTACLE 1.27MM 26POS SMD | CONN RECEPTACLE 1.27MM 32POS SMD | CONN RECEPTACLE 1.27MM 40POS SMD |
| Series | Phoenix Contact | Phoenix Contact | Phoenix Contact | Phoenix Contact |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products

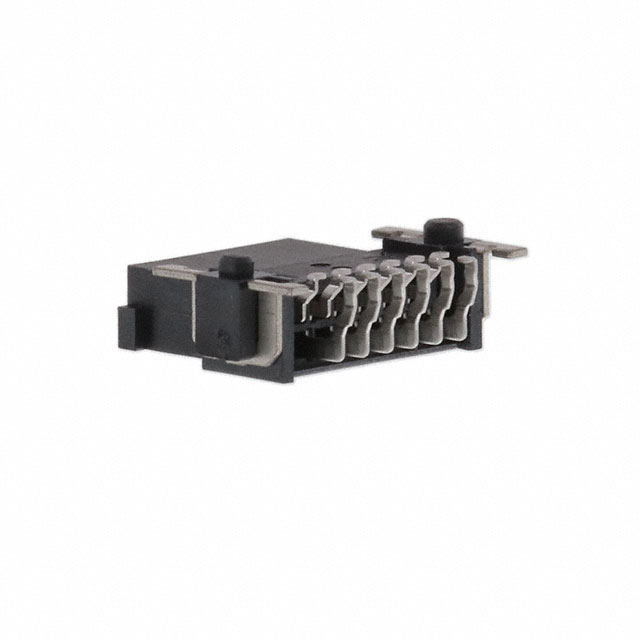

1714869
Phoenix Contact

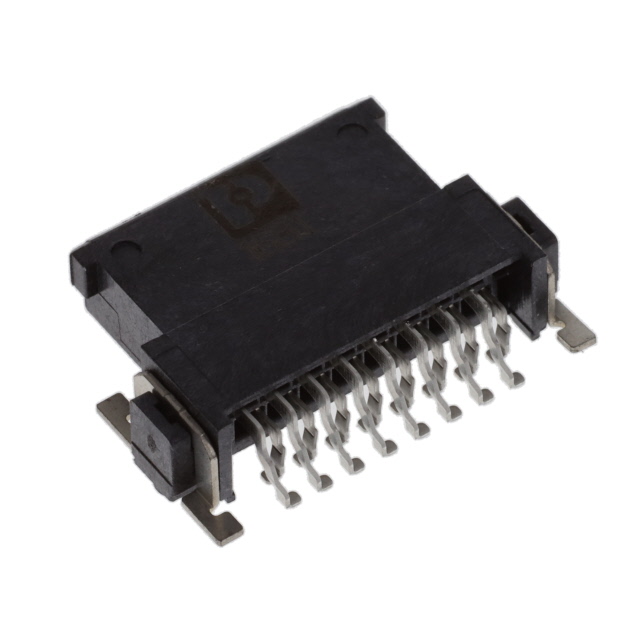

1714871
Phoenix Contact

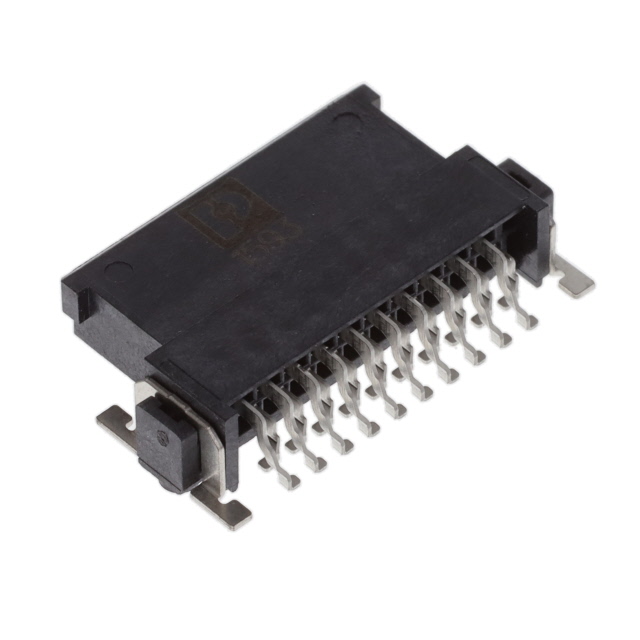

1714872
Phoenix Contact

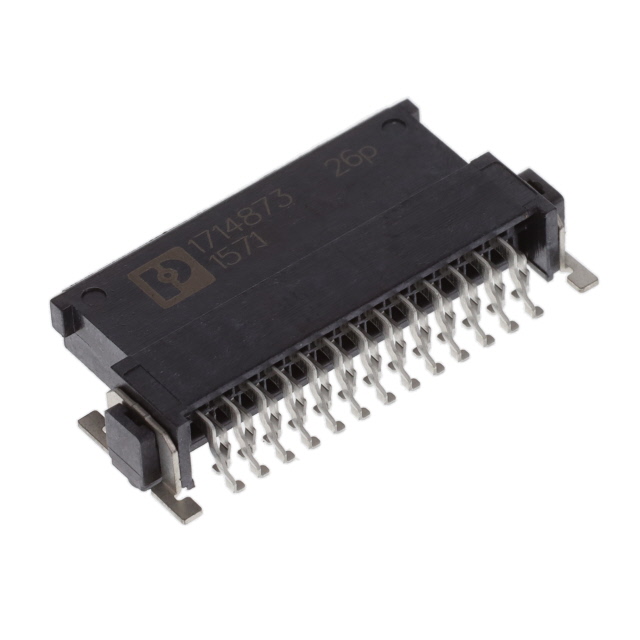

1714873
Phoenix Contact

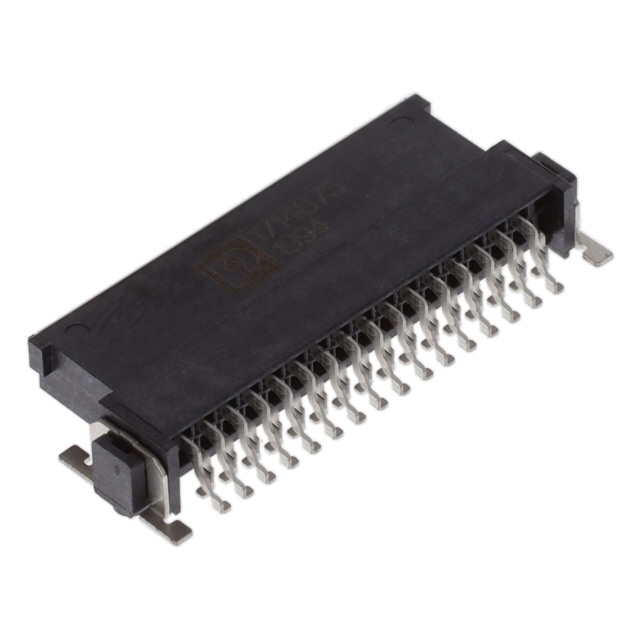

1714875
Phoenix Contact

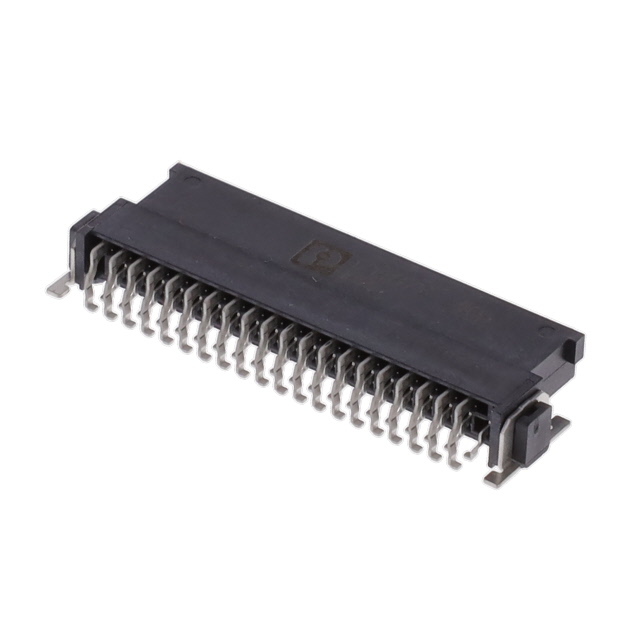

1714877
Phoenix Contact

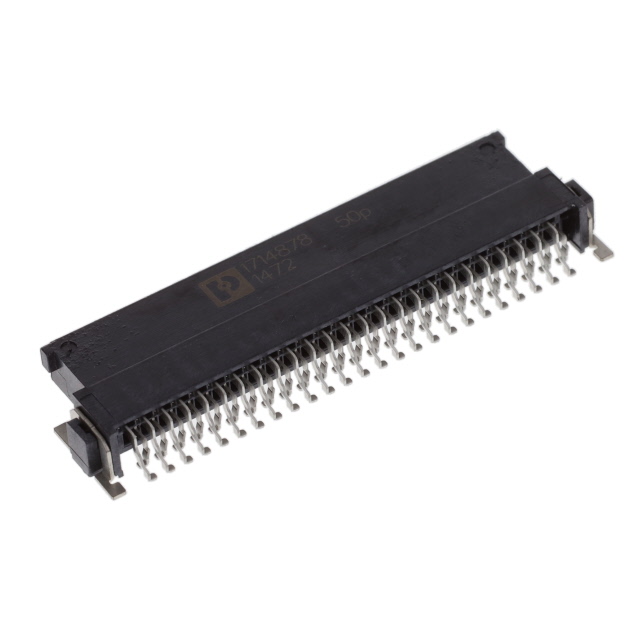

1714878
Phoenix Contact

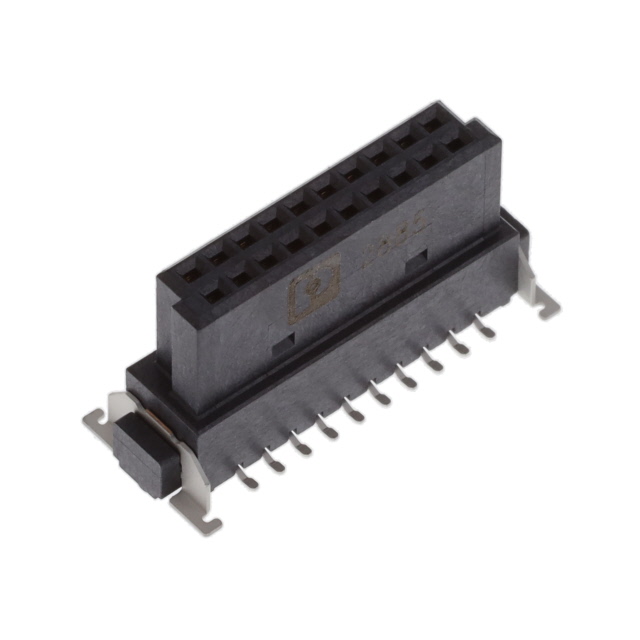

1714881
Phoenix Contact
1714882
Phoenix Contact

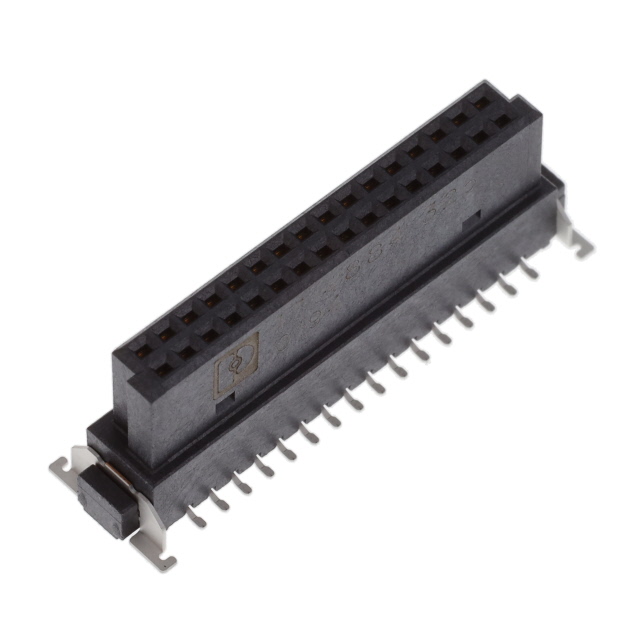

1714884
Phoenix Contact

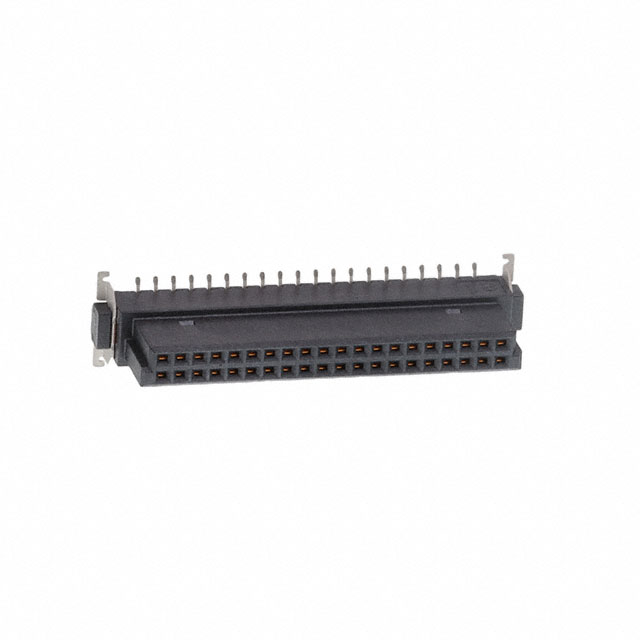

1714885
Phoenix Contact

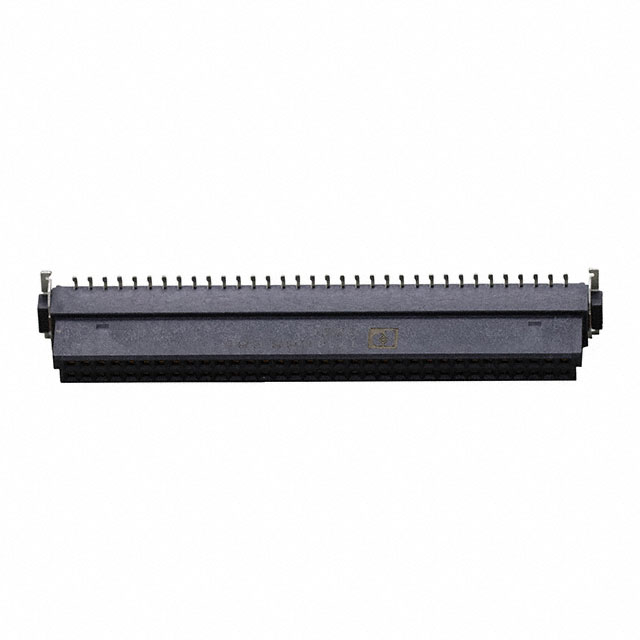

1714888
Phoenix Contact

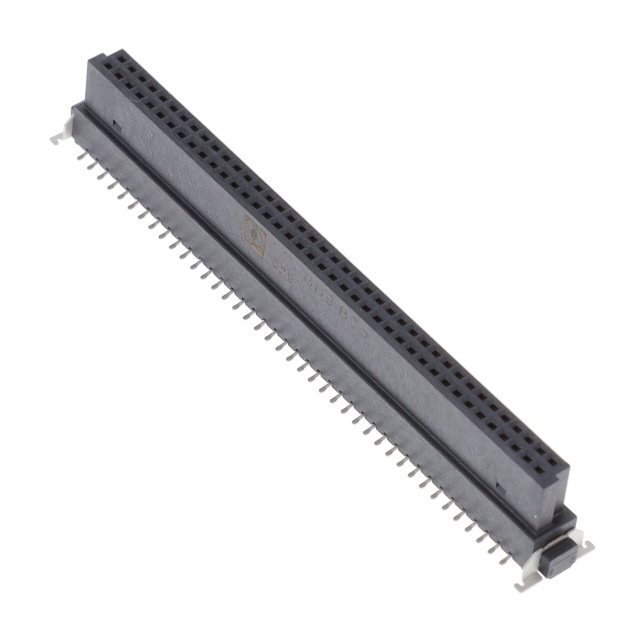

1714889
Phoenix Contact

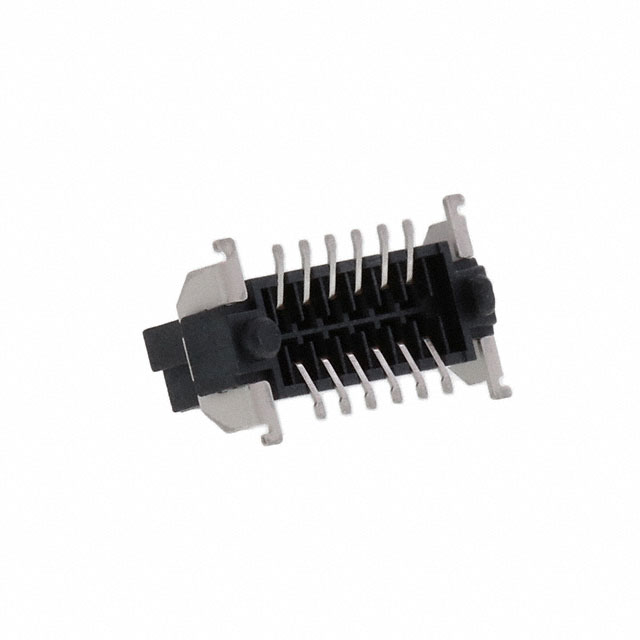

1714891
Phoenix Contact
1714892
Phoenix Contact

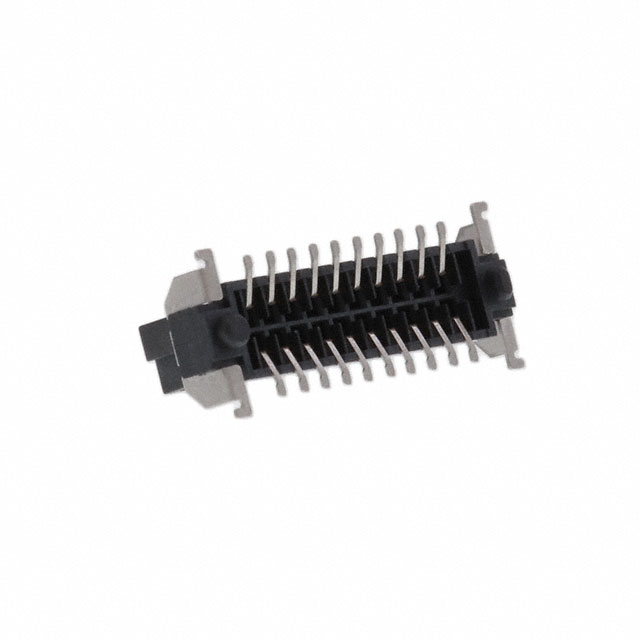

1714893
Phoenix Contact

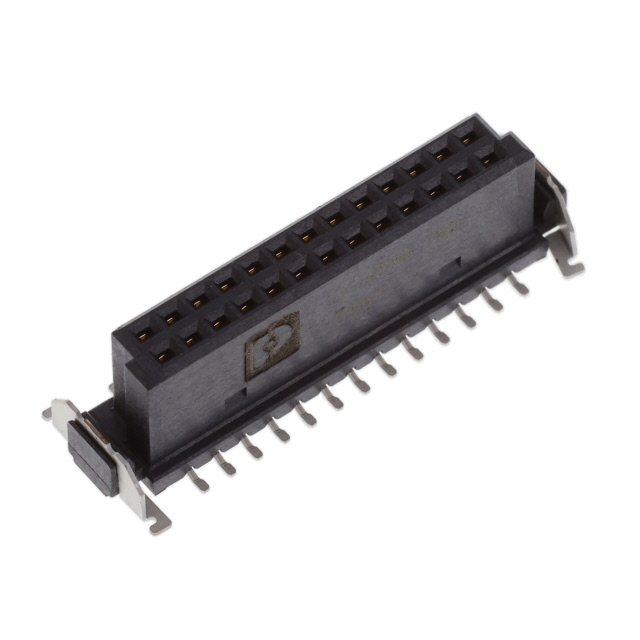

1714894
Phoenix Contact

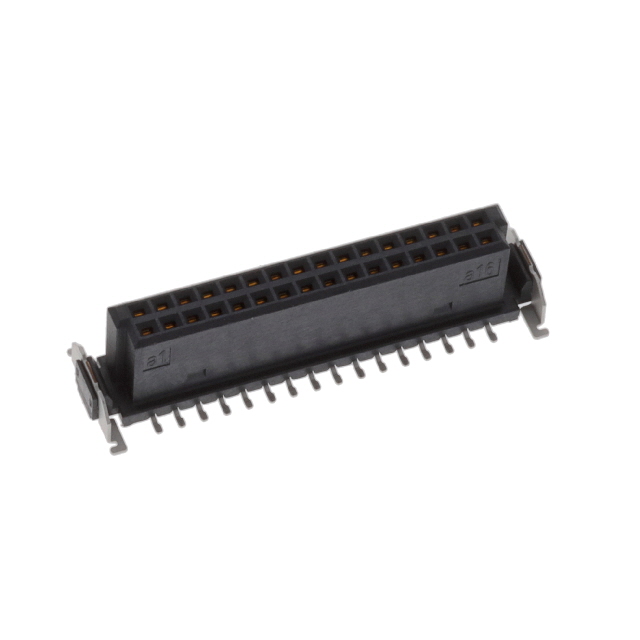

1714895
