1755066-1

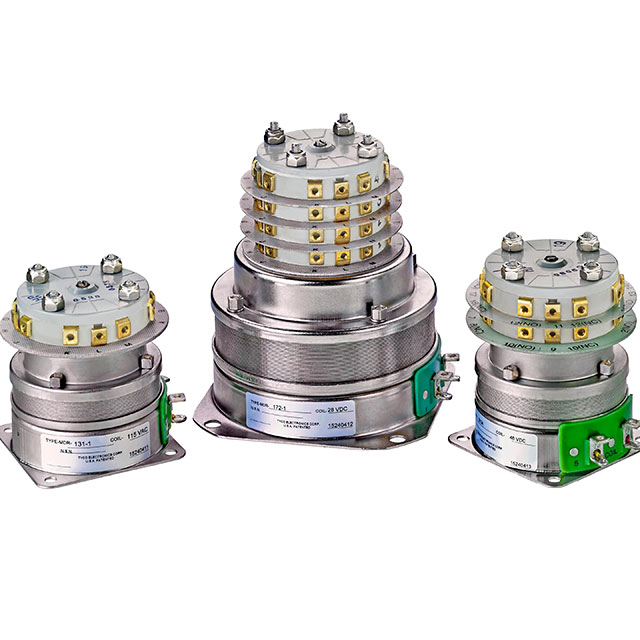

lmages are for reference only.1755066-1
RELAY GEN PURPOSE 16PDT 10A 28V
Datasheet-
81,039 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 16PDT (16 Form C) 28VDC Coil Chassis Mount
1755066-1
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | MDR, CII |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 28VDC |
| Contact Form | 16PDT (16 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | - |
| Load - Max Switching | - |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 80 VDC |
| Must Release Voltage | - |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | 0°C ~ 65°C |
| Contact Material | - |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | - |
| Base Product Number | 1755066 |
| Product Attribute |  |
|
|
|
| Part Number | 1755004-1 | 1755006-1 | 1755007-1 | 1755009-1 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RELAY | RELAY | RELAY | RELAY |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Bulk | Bulk |
