180KXF180MEFC20X20
lmages are for reference only.Payment Methods
Delivery Services
180 µF 180 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
180KXF180MEFC20X20
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Rubycon |
| Series | KXF |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 10 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
 |
 |
 |

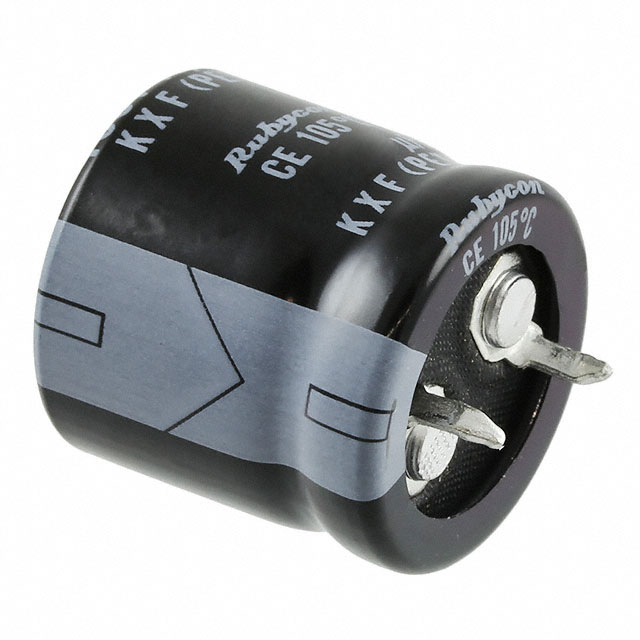

| Part Number | 180KXF180MEFC20X20 | 180KXF220MEFC22X20 | 180KXF270MEFC22X20 | 180KXF270MEFCSN22X20 |
| Manufacturer | Rubycon | Rubycon | Rubycon | Rubycon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 180UF 20% 180V SNAP TH | CAP ALUM 220UF 20% 180V SNAP TH | CAP ALUM 270UF 20% 180V SNAP TH | CAP ALUM 270UF 20% 180V SNAP TH |
| Series | Rubycon | Rubycon | Rubycon | Rubycon |
| Packaging | Bulk | Bulk | Bulk | Bulk |
