1825008-2
lmages are for reference only.1825008-2
SWITCH ROTARY DIP BCD 0.4VA 20V
Datasheet-
31,127 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch BCD 10 Position Through Hole, Right Angle Rotary for Tool Actuator 0.4VA 20VAC/DC
1825008-2
| Category | Switches - DIP Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | DRD |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | BCD |
| Number of Positions | 10 |
| Current Rating (Amps) | 0.4VA |
| Voltage Rating | 20VAC/DC |
| Actuator Type | Rotary for Tool |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.413" (10.50mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | - |
| Operating Temperature | -30°C ~ 85°C |
| Body Material | Polyphenylene Sulfide (PPS) |
| Length | 0.394" (10.00mm) |
| Mechanical Life | 10,000 Steps |
| Electrical Life | 10,000 Steps |
| Base Product Number | 1825008 |
| Product Attribute |  |
 |
 |
 |

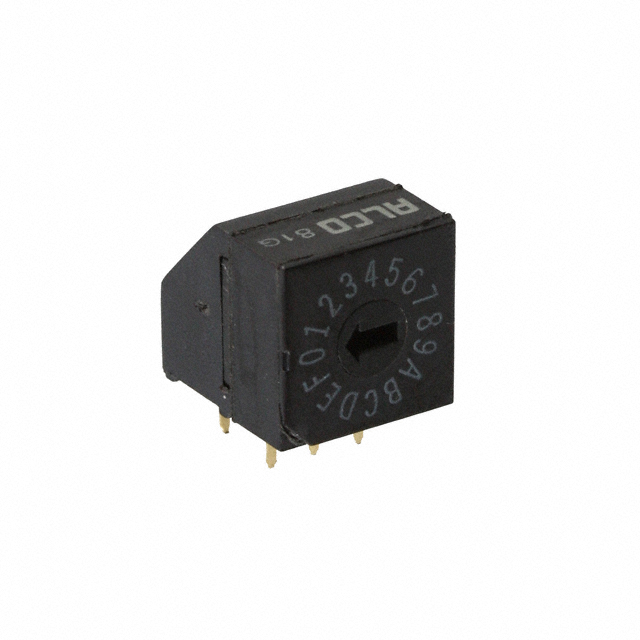

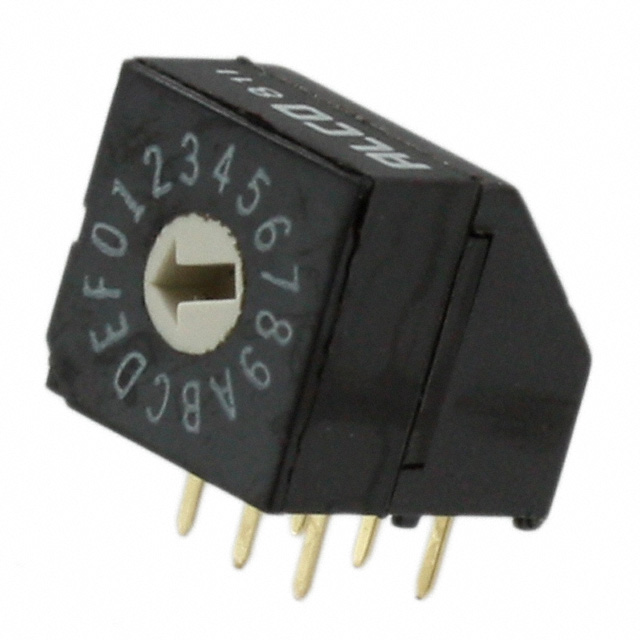

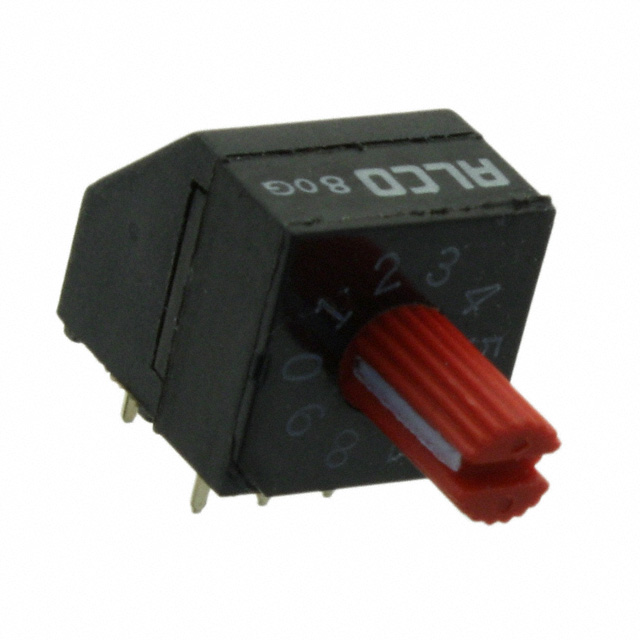

| Part Number | 1825008-3 | 1825008-4 | 1825008-5 | 1825008-6 |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | Not applicable | ROHS3 Compliant |
| Description | SW ROTARY DIP HEX COMP 0.4VA 20V | SWITCH ROTARY DIP HEX 0.4VA 20V | SW ROTARY DIP BCD COMP 0.4VA 20V | SWITCH ROTARY DIP BCD 0.4VA 20V |
| Series | DRD | DRD | DR | DR |
| Packaging | Bulk | Bulk | Tube | Tube |
