1825059-5
lmages are for reference only.1825059-5
SWITCH SLIDE DIP SPST 0.025A 24V
Datasheet-
51,500 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
1825059-5
| Category | Switches - DIP Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | ADF |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST |
| Number of Positions | 2 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.177" (4.50mm) |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | Tape Seal |
| Operating Temperature | -30°C ~ 85°C |
| Body Material | Polyphenylene Sulfide (PPS) |
| Length | 0.278" (7.06mm) |
| Mechanical Life | 1,000 Cycles |
| Electrical Life | 1,000 Cycles |
| Base Product Number | 1825059 |
| Product Attribute |  |
 |
 |
 |

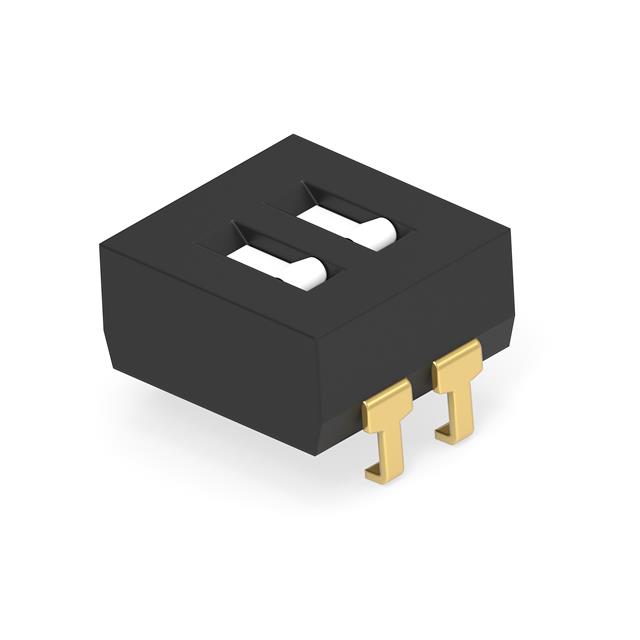

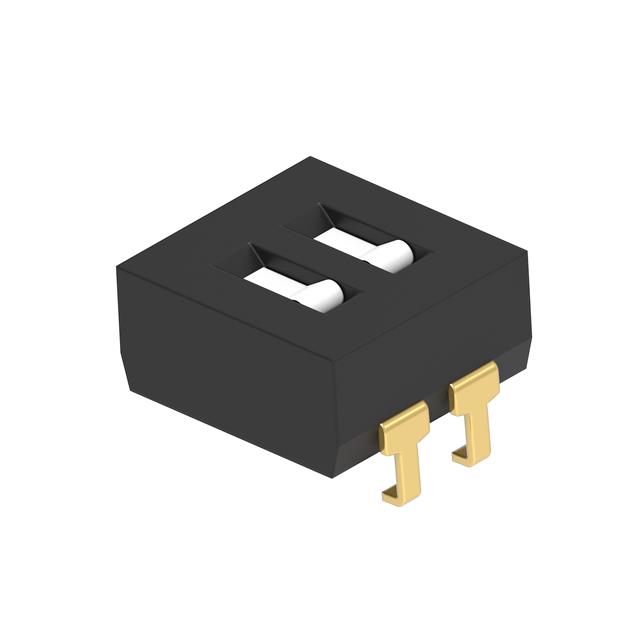

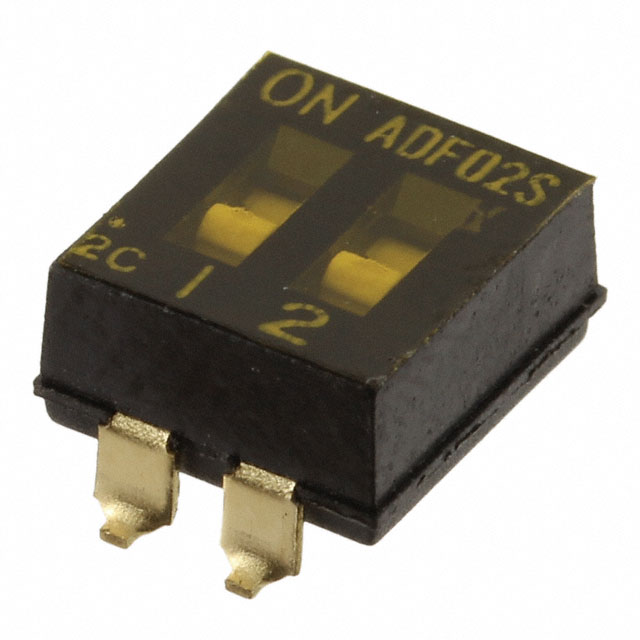

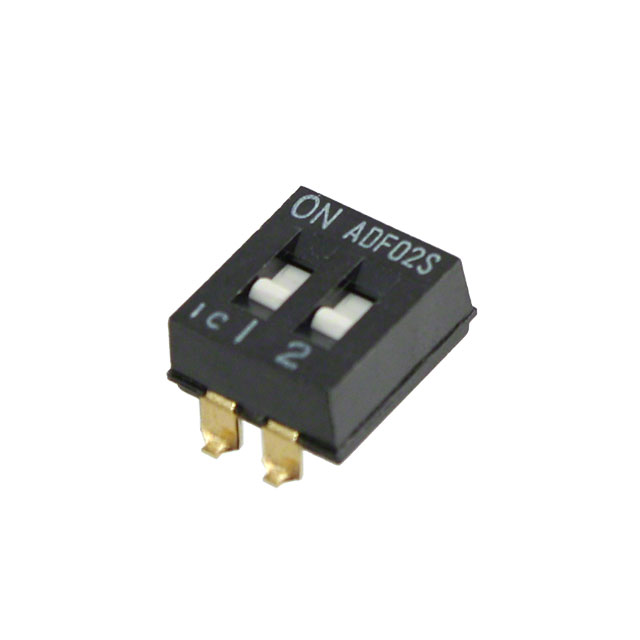

| Part Number | 1825059-1 | 1825059-3 | 1825059-4 | 1825059-6 |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | Not applicable | ROHS3 Compliant |
| Description | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH STANDARD DIP SPST | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V |
| Series | ADF | ADF | ADF | ADF |
| Packaging | Tube | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
