1825086-2
lmages are for reference only.1825086-2
SWITCH TACTILE SPST-NO 0.05A 32V
Datasheet-
40,943 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Tactile Switch SPST-NO Top Actuated Surface Mount
1825086-2
| Category | Switches - Tactile Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | FSMJM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 32VDC |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Actuator Height off PCB, Vertical | 2.50mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | Gull Wing |
| Outline | 6.00mm x 4.00mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 260gf |
| Ingress Protection | - |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Actuator Material | Silicone Rubber |
| Switch Travel | 0.50mm |
| Mechanical Life | 100,000 Cycles |
| Base Product Number | 1825086 |
| Product Attribute |  |
 |
 |
|

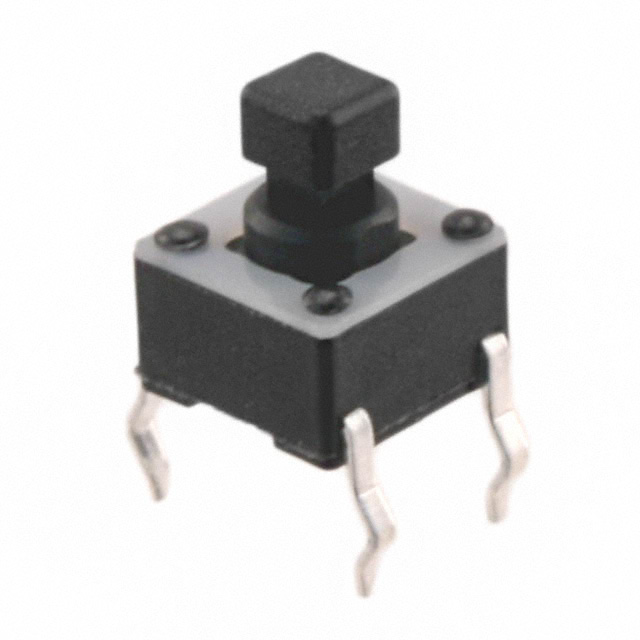

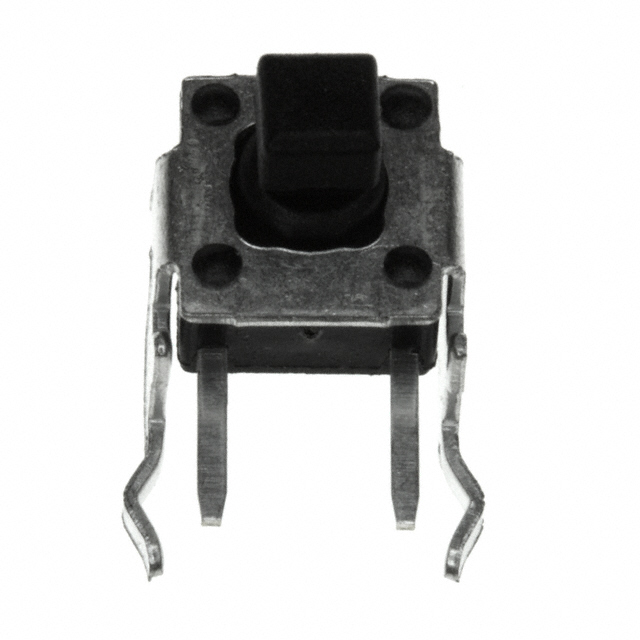

| Part Number | 1825968-2 | 1825967-2 | 1825027-4 | 1825968-3 |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity Passive Product |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | SWITCH TACTILE SPST-NO 0.05A 24V | SWITCH TACTILE SPST-NO 0.05A 24V | SWITCH TACTILE SPST-NO 0.05A 24V |
| Series | FSMRACD | FSMCD | FSMRAJ | FSM |
| Packaging | Bulk | Bulk | Bag | Bulk |
