Product CatalogPart Number
1845263
Manufacturer
Phoenix ContactDescription
TERM BLOCK HDR 22POS VERT 2.54MM
Datasheet
DatasheetPackage
-
In Stock
57,337 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
1845263
1845263
lmages are for reference only.Payment Methods
Delivery Services
22 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.100" (2.54mm) Vertical Surface Mount
Quick Inquiry
1845263
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | Phoenix Contact |
| Series | COMBICON DMCV |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 22 |
| Positions Per Level | 11 |
| Number of Levels | 2 |
| Pitch | 0.100" (2.54mm) |
| Header Orientation | Vertical |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Surface Mount |
| Current - IEC | 6A |
| Voltage - IEC | 160 V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Black |
| Operating Temperature | - |
| Contact Mating Finish | Gold |
| Features | Solder Retention |
| Material Flammability Rating | - |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | - |
| Contact Material | - |
| Housing Material | - |
| Contact Tail Length | - |
| Insulation Height | - |
| Current - UL | 6 A |
| Voltage - UL | 150 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

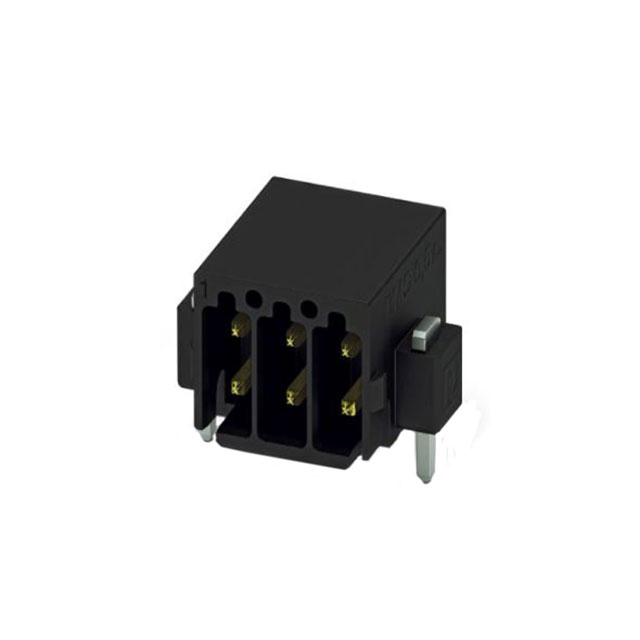

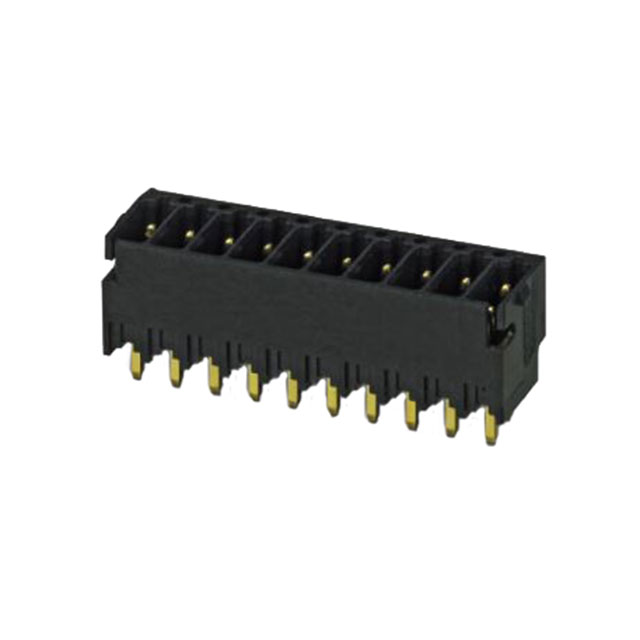

| Part Number | 1845001 | 1845014 | 1845027 | 1845030 |
| Manufacturer | Phoenix Contact | Phoenix Contact | Phoenix Contact | Phoenix Contact |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | TERM BLOCK HDR 30POS VERT 2.54MM | TERM BLOCK HDR 32POS VERT 2.54MM | TERM BLOCK HDR 4POS 90DEG 2.54MM | TERM BLOCK HDR 6POS 90DEG 2.54MM |
| Series | COMBICON DMCV | COMBICON DMCV | COMBICON DMC | COMBICON DMC |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products

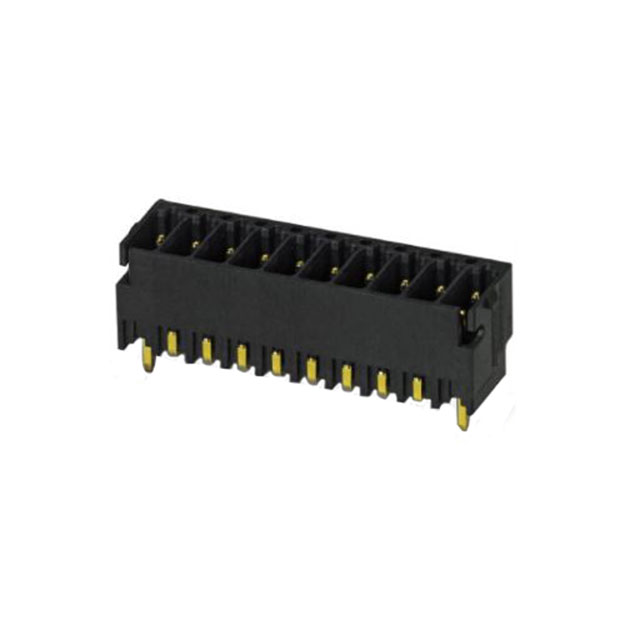

1845205
Phoenix Contact
1845218
Phoenix Contact

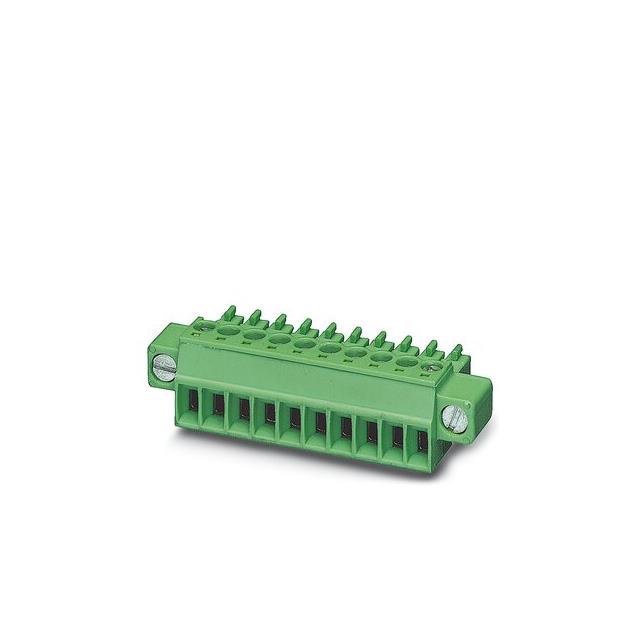

1845219
Phoenix Contact
1845221
Phoenix Contact

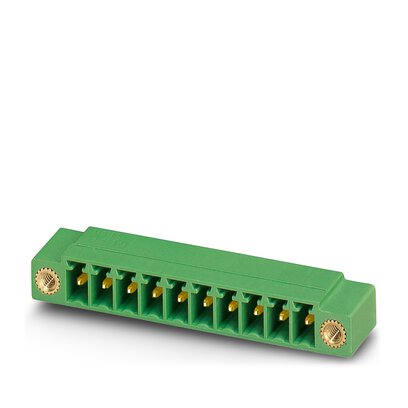

1845222
Phoenix Contact
1845234
Phoenix Contact
1845247
Phoenix Contact
1845248
Phoenix Contact
1845250
Phoenix Contact

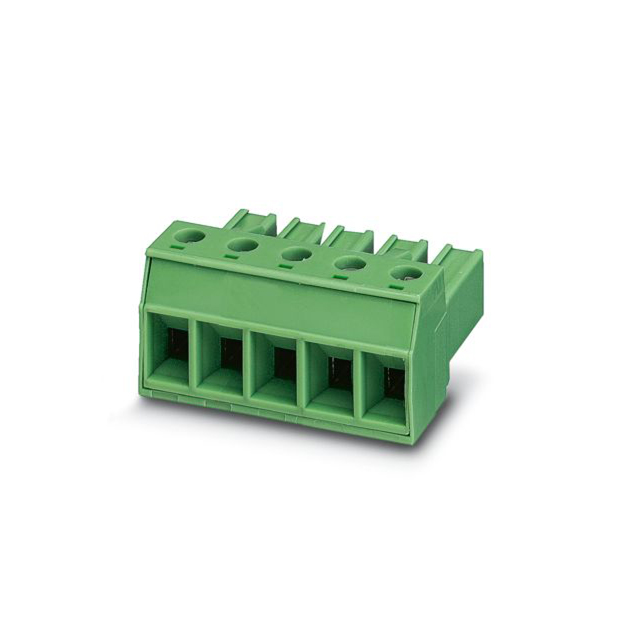

1845251
Phoenix Contact
1845276
Phoenix Contact
1845289
Phoenix Contact

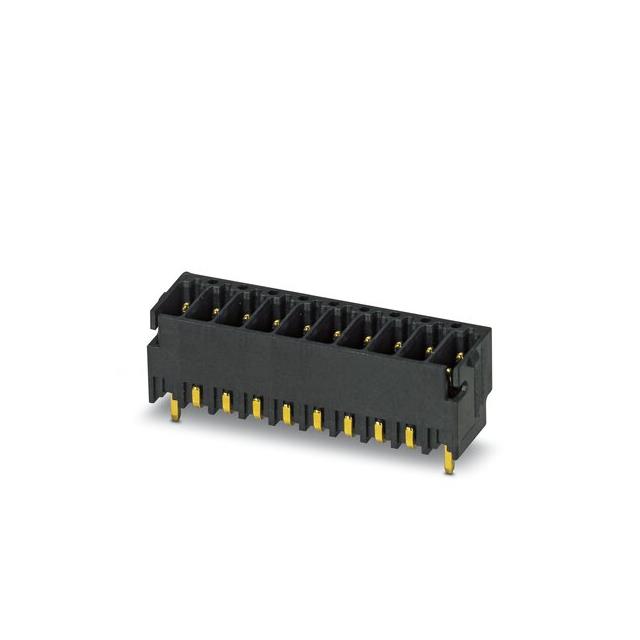

1845292
