Product CatalogPart Number
1847819
Manufacturer
Phoenix ContactDescription
TERM BLOCK HDR 20POS VERT 3.81MM
Datasheet
DatasheetPackage
-
In Stock
13,254 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
1847819
1847819
lmages are for reference only.Payment Methods
Delivery Services
20 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Quick Inquiry
1847819
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | Phoenix Contact |
| Series | COMBICON MCDV |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 20 |
| Positions Per Level | 10 |
| Number of Levels | 2 |
| Pitch | 0.150" (3.81mm) |
| Header Orientation | Vertical |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | 8A |
| Voltage - IEC | 320 V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Green |
| Operating Temperature | - |
| Contact Mating Finish | Tin |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | - |
| Contact Material | - |
| Housing Material | Polyamide (PA), Nylon |
| Contact Tail Length | 0.134" (3.40mm) |
| Insulation Height | 0.862" (21.89mm) |
| Current - UL | 8 A |
| Voltage - UL | 300 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

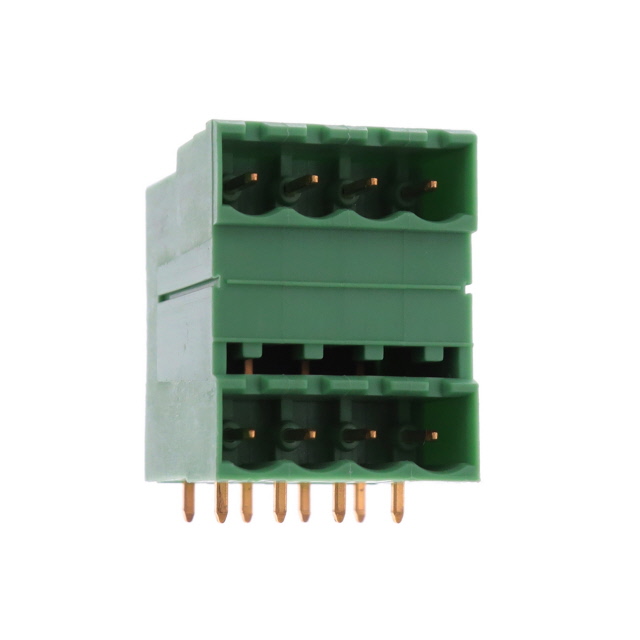

| Part Number | 1847000 | 1847055 | 1847068 | 1847071 |
| Manufacturer | Phoenix Contact | Phoenix Contact | Phoenix Contact | Phoenix Contact |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TERM BLOCK HDR 8POS 90DEG 5.08MM | TERM BLOCK PLUG 2POS STR 3.5MM | TERM BLOCK PLUG 3POS STR 3.5MM | TERM BLOCK PLUG 4POS STR 3.5MM |
| Series | COMBICON MDSTB | COMBICON MC | COMBICON MC | COMBICON MC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
