18N10
lmages are for reference only.18N10
N100V,RD(MAX)<53M@10V,RD(MAX)<63
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
42,398 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 100 V 35A (Tc) 80W (Tc) Surface Mount TO-252
18N10
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Goford Semiconductor |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 53mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2161 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 80W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252 |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 26 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

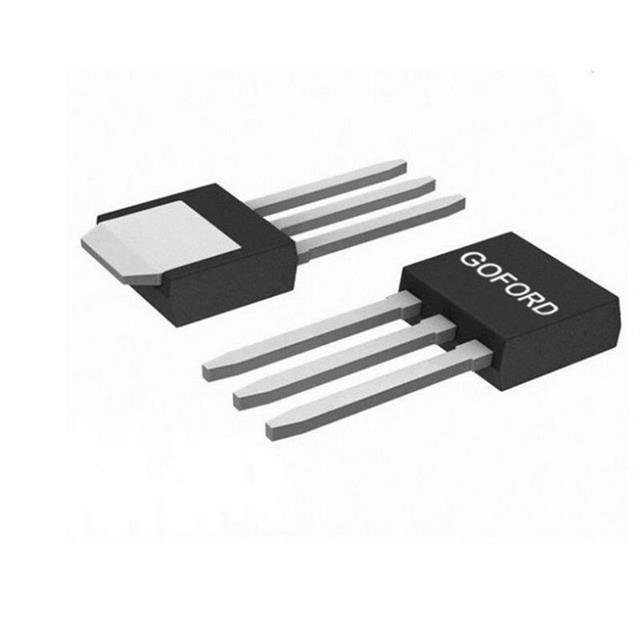

| Part Number | 18N20 | 18N20F | 18N20J | BS170PSTOA |
| Manufacturer | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | N 200V, RD(MAX)<0.16@10V,VTH1.0V | N200V, 18A,RD<0.19@10V,VTH1.0V~3 | N200V, 18A,RD<0.16@10V,VTH1V~3V, | MOSFET N-CH 60V 270MA E-LINE |
| Series | TrenchFET® | TrenchFET® | TrenchFET® | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube | Tape & Reel (TR) |
