Product CatalogPart Number
195-4MS
Manufacturer
CTS ElectrocomponentsDescription
SWITCH PIANO DIP SPST 0.05A 24V
Datasheet
DatasheetPackage
-
In Stock
73,983 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
195-4MS
195-4MS
lmages are for reference only.Payment Methods
Delivery Services
Dip Switch SPST 4 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC
Quick Inquiry
195-4MS
Specifications
| Category | Switches - DIP Switches - |
| Manufacturer | CTS Electrocomponents |
| Series | 195 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST |
| Number of Positions | 4 |
| Current Rating (Amps) | 50mA |
| Voltage Rating | 24VDC |
| Actuator Type | Piano |
| Actuator Level | Raised |
| Contact Material | - |
| Contact Finish | Tin |
| Height Above Board | 0.311" (7.90mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | Epoxy Sealed Terminals |
| Operating Temperature | -40°C ~ 85°C |
| Body Material | Plastic |
| Length | 0.486" (12.34mm) |
| Mechanical Life | - |
| Electrical Life | 2,000 Cycles |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

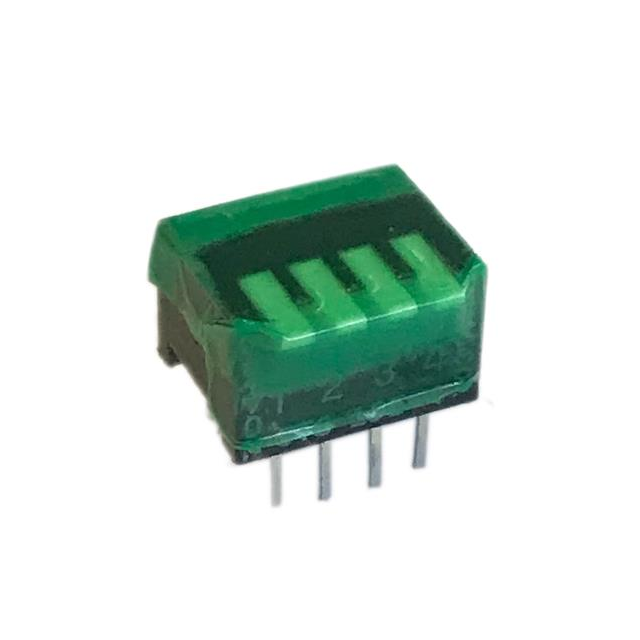

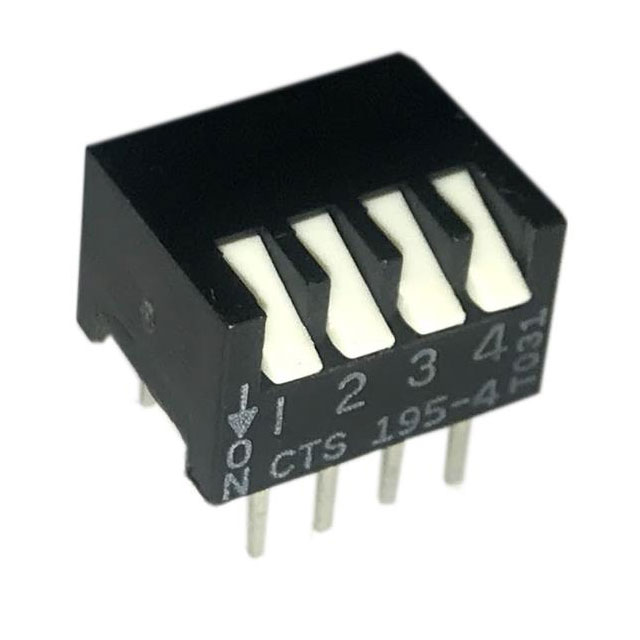

| Part Number | 195-4MSN | 195-4MST | 195-10MS | 195-10MSN |
| Manufacturer | CTS Electrocomponents | CTS Electrocomponents | CTS Electrocomponents | CTS Electrocomponents |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH PIANO DIP SPST 0.05A 24V | SWITCH PIANO DIP SPST 0.05A 24V | SWITCH PIANO DIP SPST 0.05A 24V | SWITCH PIANO DIP SPST 0.05A 24V |
| Series | 195 | 195 | 195 | 195 |
| Packaging | Tube | Tube | Tube | Tube |
