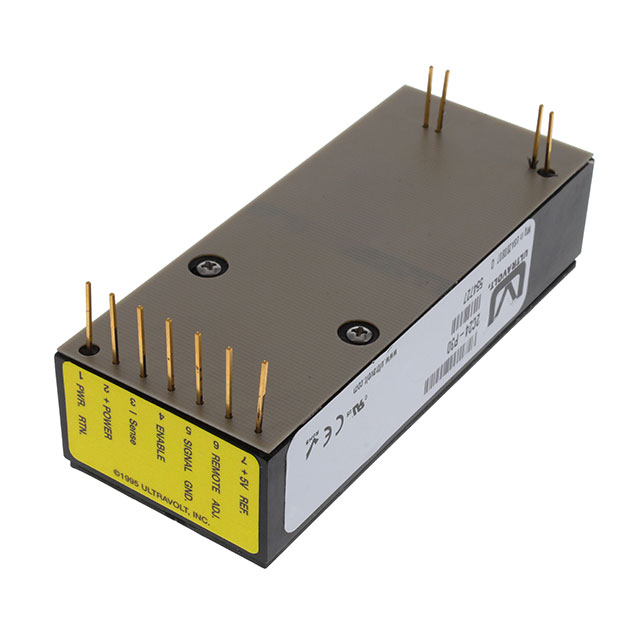

High Voltage - Non-Isolated Module DC DC Converter 1 Output 1000V 20mA 23V - 30V Input
1C24-P20-M-H
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ULTRAVOLT / Advanced Energy |
| Series | UltraVolt® C |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 23V |
| Voltage - Input (Max) | 30V |
| Voltage - Output 1 | 1000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 20mA |
| Power (Watts) | 20 W |
| Applications | ITE (Commercial) |
| Features | Heat Sink |
| Operating Temperature | -40°C ~ 65°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 11-DIP Module |
| Size / Dimension | 3.70" L x 1.50" W x 1.26" H (94.0mm x 38.1mm x 32.1mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CE, cURus |
| Standard Number | - |
| Base Product Number | 1C24-P20 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
|
