Product CatalogPart Number
1N4946 BK
Manufacturer
Central Semiconductor CorpDescription
DIODE GEN PURP 600V 1A GPR-1A
Datasheet
DatasheetPackage
R-1, Axial
In Stock
29,603 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
1N4946 BK
1N4946 BK

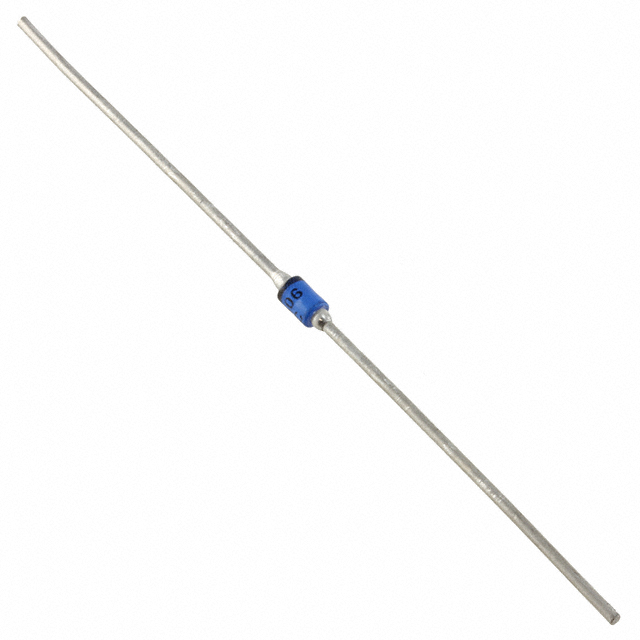

lmages are for reference only.Payment Methods
Delivery Services
Diode 600 V 1A Through Hole GPR-1A
Quick Inquiry
1N4946 BK
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Central Semiconductor Corp |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 250 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 600 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | R-1, Axial |
| Supplier Device Package | GPR-1A |
| Operating Temperature - Junction | - |
| Base Product Number | 1N4946 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | 1N4946 | 1N4946-1 | 1N4946-1/TR | 1N4946-AP |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Micro Commercial Co |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ||
| Description | DIODE GEN PURP 600V 1A AXIAL | DIODE GEN PURP 600V 1A | DIODE GEN PURP 600V 1A | DIODE GEN PURP 600V 1A DO41 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Tape & Box (TB) |
