1N5059

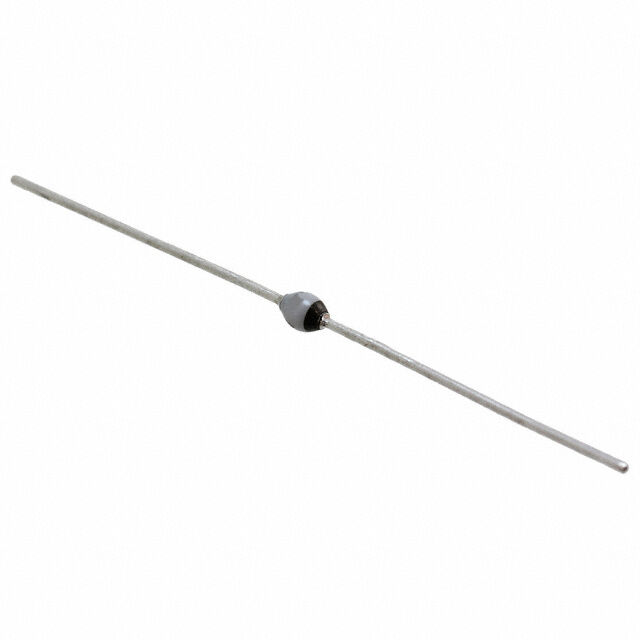

lmages are for reference only.1N5059
DIODE GEN PURP 200V 2A DO204AC
DatasheetDO-204AC, DO-15, Axial
88,559 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 200 V 2A Through Hole DO-204AC (DO-15)
1N5059
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 2A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 2 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1.5 µs |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) |
| Operating Temperature - Junction | -50°C ~ 150°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 1N5059GP-E3/54 | 1N5059GPHE3/54 | 1N5059TAP | 1N5059TR |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE GEN PURP 200V 1A DO204AC | DIODE GEN PURP 200V 1A DO204AC | DIODE AVALANCHE 200V 2A SOD57 | DIODE AVALANCHE 200V 2A SOD57 |
| Series | SUPERECTIFIER® | SUPERECTIFIER® | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Box (TB) | Tape & Reel (TR)-->Cut Tape (CT) |
