1N5230B-T

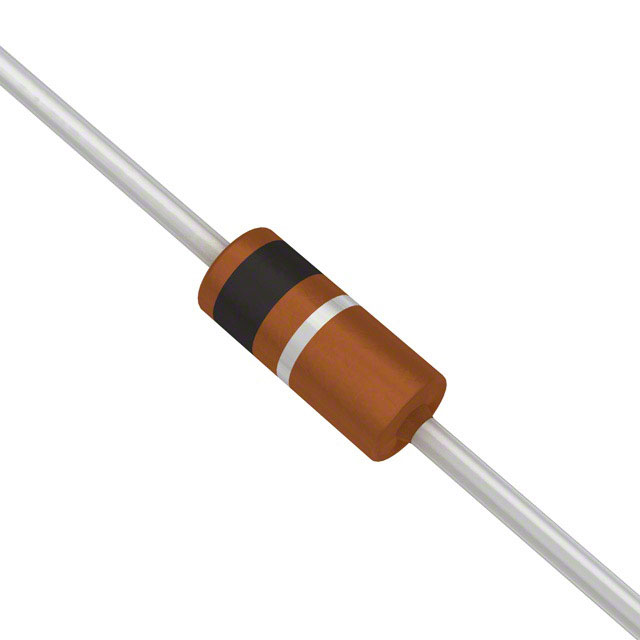

lmages are for reference only.1N5230B-T
DIODE ZENER 4.7V 500MW DO204AH
DatasheetDO-204AH, DO-35, Axial
59,869 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 4.7 V 500 mW ±5% Through Hole DO-204AH (DO-35)
1N5230B-T
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 4.7 V |
| Tolerance | ±5% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 1900 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 2 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Operating Temperature | 175°C |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-204AH (DO-35) |
| Base Product Number | 1N5230 |
| Product Attribute |  |
 |
|
|
| Part Number | 1N5230B-1 | 1N5230B-1/TR | 1N5230B-G | 1N5230B-T |
| Manufacturer | Microchip Technology | Microchip Technology | Comchip Technology | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DIODE ZENER 4.7V 500MW DO204AH | DIODE ZENER 4.7V 500MW DO204AH | DIODE ZENER 4.7V 500MW DO35 | DIODE ZENER 4.7V 500MW DO35 |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Box (TB) | Tape & Reel (TR)-->Cut Tape (CT) |
