Product CatalogPart Number
1N8024-GA
Manufacturer
GeneSiC SemiconductorDescription
DIODE SIL CARB 1.2KV 750MA TO257
Datasheet
DatasheetPackage
TO-257-3
In Stock
53,333 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
1N8024-GA
1N8024-GA
lmages are for reference only.Payment Methods
Delivery Services
Diode 1200 V 750mA Through Hole TO-257
Quick Inquiry
1N8024-GA
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | GeneSiC Semiconductor |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 750mA |
| Voltage - Forward (Vf) (Max) @ If | 1.74 V @ 750 mA |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 1200 V |
| Capacitance @ Vr, F | 66pF @ 1V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | TO-257-3 |
| Supplier Device Package | TO-257 |
| Operating Temperature - Junction | -55°C ~ 250°C |
| Base Product Number | 1N8024 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 1N8026-GA | 1N8030-GA | 1N8031-GA | 1N8032-GA |
| Manufacturer | GeneSiC Semiconductor | GeneSiC Semiconductor | GeneSiC Semiconductor | GeneSiC Semiconductor |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |

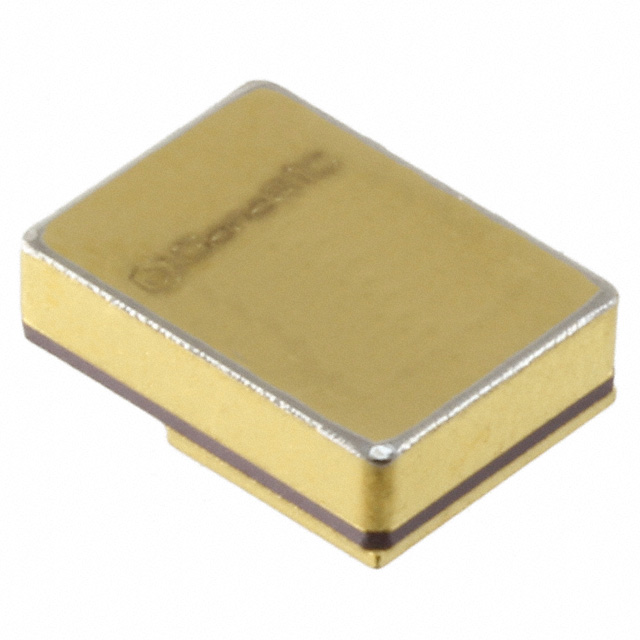

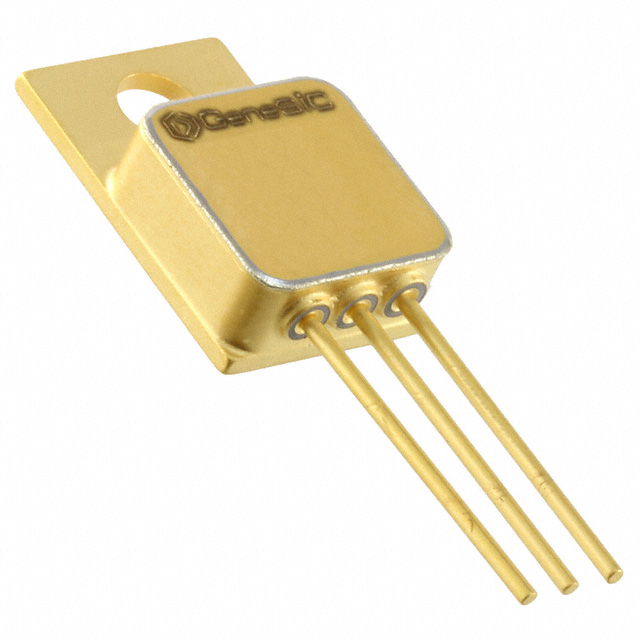

| Description | DIODE SIL CARBIDE 1.2KV 8A TO257 | DIODE SIL CARB 650V 750MA TO257 | DIODE SIL CARBIDE 650V 1A TO276 | DIODE SIL CARB 650V 2.5A TO257 |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
