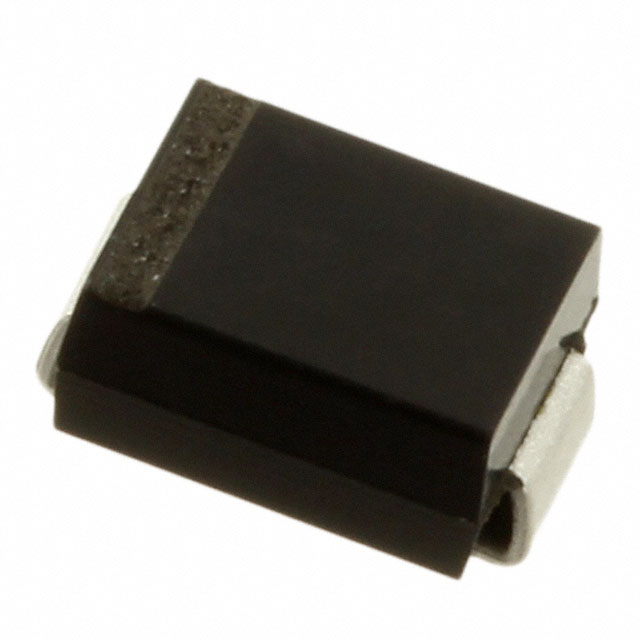

1SMB90CA TR13 PBFREE
lmages are for reference only.1SMB90CA TR13 PBFREE
TVS DIODE 90VWM 146VC SMB
DatasheetDO-214AA, SMB
87,215 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
146V Clamp 4.1A Ipp Tvs Diode Surface Mount SMB
1SMB90CA TR13 PBFREE
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Central Semiconductor Corp |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 90V |
| Voltage - Breakdown (Min) | 100V |
| Voltage - Clamping (Max) @ Ipp | 146V |
| Current - Peak Pulse (10/1000µs) | 4.1A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

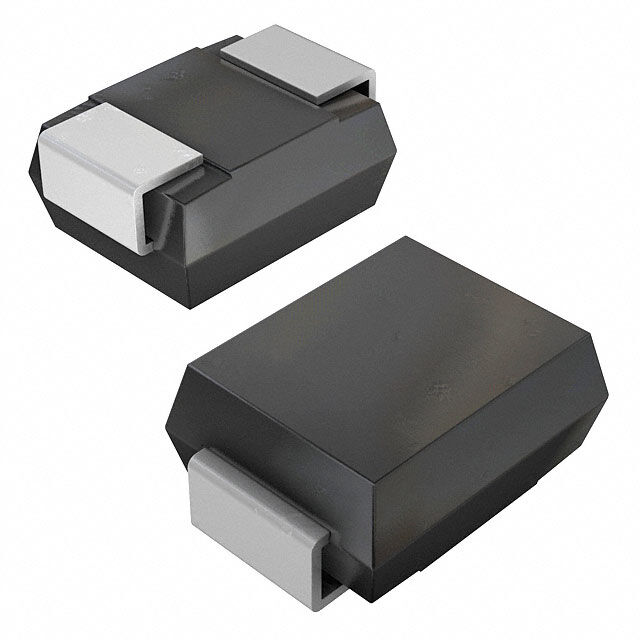

| Part Number | 1SMB9.0A TR13 PBFREE | 1SMB9.0AT3 | 1SMB9.0AT3G | 1SMB9.0CA TR13 |
| Manufacturer | Central Semiconductor Corp | onsemi | Littelfuse Inc. | Central Semiconductor Corp |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | TVS DIODE 9VWM 15.4VC SMB | TVS DIODE 9VWM 15.4VC SMB | TVS DIODE 9VWM 15.4VC SMB | TVS DIODE 9VWM 15.4VC SMB |
| Series | Central Semiconductor Corp | onsemi | Littelfuse Inc. | Central Semiconductor Corp |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
