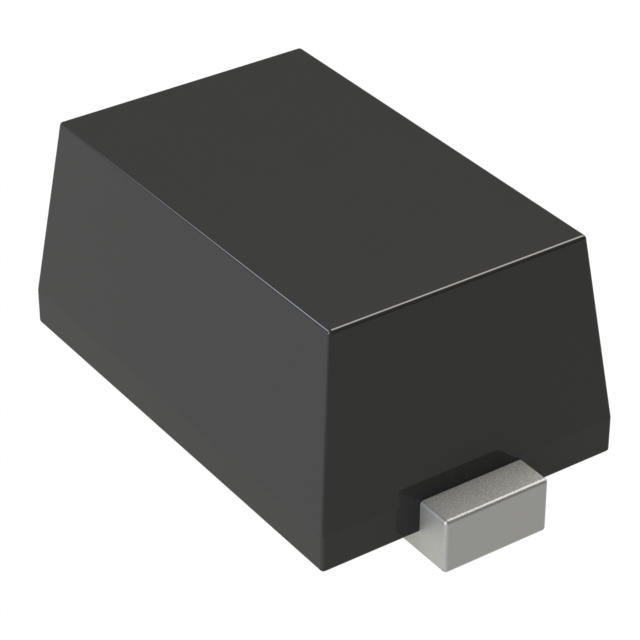

.jpg "1SS388(TL3,F,D)")
1SS388(TL3,F,D)
lmages are for reference only.1SS388(TL3,F,D)
DIODE SCHOTTKY 45V 100MA ESC
DatasheetSC-79, SOD-523
34,488 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 45 V 100mA Surface Mount ESC
1SS388(TL3,F,D)
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Current - Average Rectified (Io) | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 50 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 5 µA @ 10 V |
| Capacitance @ Vr, F | 18pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | ESC |
| Operating Temperature - Junction | -40°C ~ 100°C |
| Base Product Number | 1SS388 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

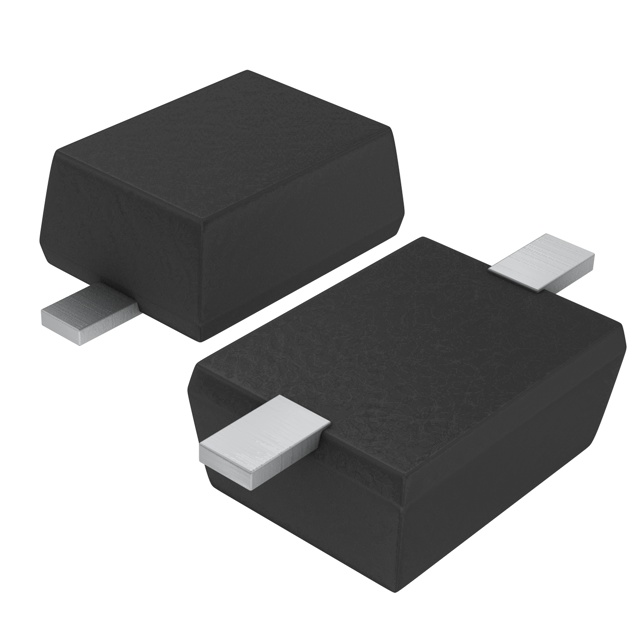

| Part Number | 1SS380TE-17 | 1SS380VMFHTE-17 | 1SS380VMTE-17 | 1SS385,LF(CT |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE GEN PURP 35V 100MA UMD2 | DIODE GEN PURP 80V 100MA UMD2 | DIODE GEN PURP 80V 100MA UMD2 | DIODE SCHOTTKY 10V 100MA SSM |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
