2-1415535-0
lmages are for reference only.2-1415535-0
RELAY GEN PURPOSE 4PDT 6A 230V
Datasheet-
89,814 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) 230VAC Coil DIN Rail
2-1415535-0
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | PT, SCHRACK |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | DIN Rail |
| Coil Voltage | 230VAC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 240VAC - Max |
| Load - Max Switching | 1440VA |
| Coil Current | 11.8 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator, Mechanical Indicator, Socket Included, Test Button |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 184 VAC |
| Must Release Voltage | 69 VAC |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 19.47 kOhms |
| Base Product Number | PT5L8 |
| Product Attribute |  |
 |
 |
 |

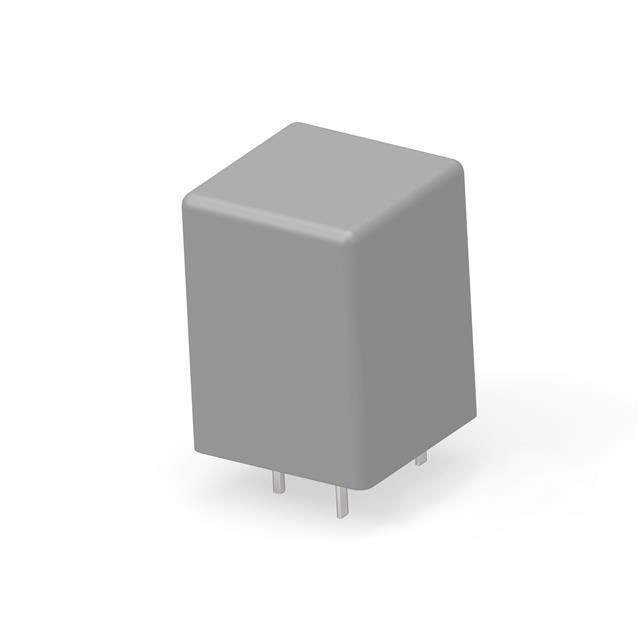

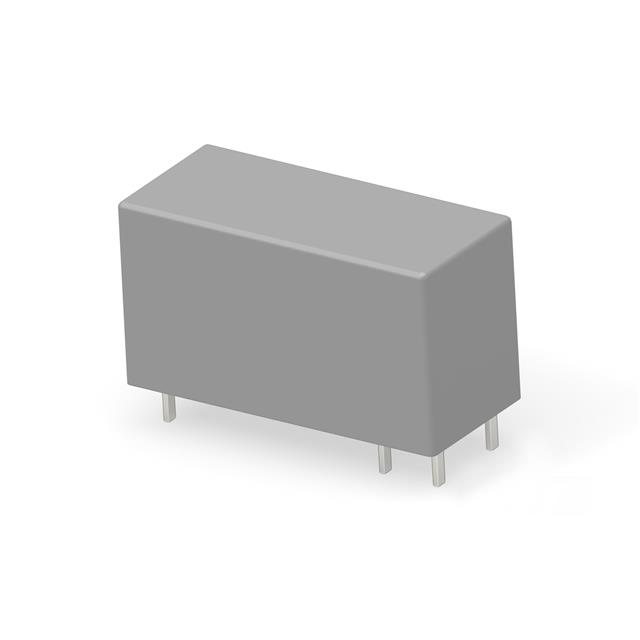

| Part Number | 2-1415536-0 | 2-1415536-5 | 2-1415538-2 | 2-1415538-3 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RTH34024WG | PT371048 | RT33L012WG | RT115730 |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tube | Tube | Bulk | Tube |
