Product CatalogPart Number
2-5499141-8
Manufacturer
TE Connectivity AMP ConnectorsDescription
CONN HEADER R/A 34POS 2.54MM
Datasheet
DatasheetPackage
-
In Stock
73,699 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
2-5499141-8
2-5499141-8
lmages are for reference only.Payment Methods
Delivery Services

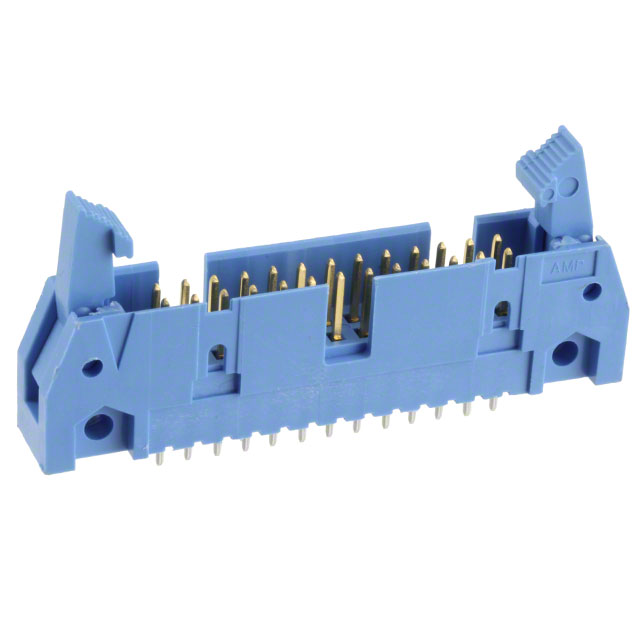

Connector Header Through Hole, Right Angle 34 position 0.100" (2.54mm)
Quick Inquiry
2-5499141-8
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | AMP-Latch |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Lock/Eject Hooks, Long |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Overall Contact Length | - |
| Insulation Height | 0.315" (8.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold or Gold-Palladium |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | - |
| Features | Keying Slot, Mounting Flange |
| Operating Temperature | -65°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Blue |
| Current Rating (Amps) | 1A per Contact |
| Voltage Rating | 250VAC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Applications | - |
| Base Product Number | 5499141 |
