Product CatalogPart Number
2.5V24-N1-W
Manufacturer
ULTRAVOLT / Advanced EnergyDescription
DC DC CONVERTER 2500V 1W
Datasheet
DatasheetPackage
9-SIP Module
In Stock
97,194 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
2.5V24-N1-W
2.5V24-N1-W

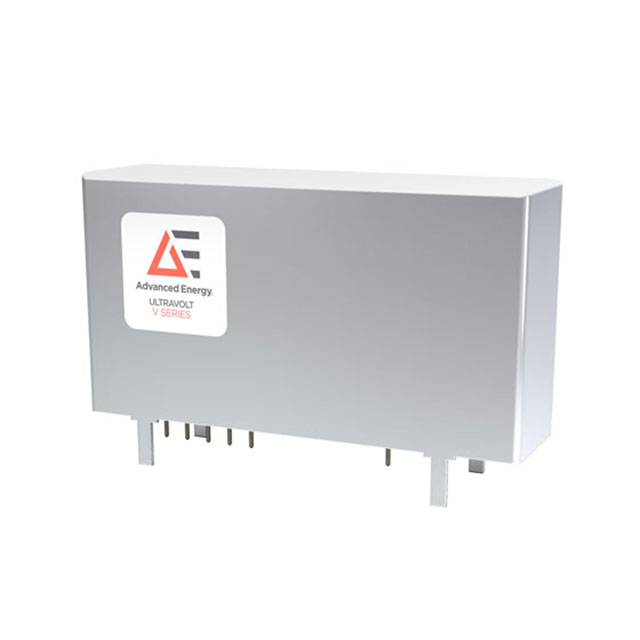

lmages are for reference only.Payment Methods
Delivery Services
High Voltage - Non-Isolated Module DC DC Converter 1 Output 2500V 400µA 22V - 26V Input
Quick Inquiry
2.5V24-N1-W
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ULTRAVOLT / Advanced Energy |
| Series | UltraVolt® V |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 22V |
| Voltage - Input (Max) | 26V |
| Voltage - Output 1 | 2500V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 400µA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -10°C ~ 65°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 9-SIP Module |
| Size / Dimension | 1.81" L x 0.47" W x 0.98" H (46.0mm x 12.0mm x 25.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | CE, cUL, cURus, UL |
| Standard Number | - |
| Base Product Number | 2.5V24 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | 2.5V24-N1-EI | 2.5V24-N1-EI-W | 2.5V24-N1-EI-W | 2.5V24-N1 |
| Manufacturer | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 2500V 1W | DC DC CONVERTER 2500V 1W | DC DC CONVERTER 2500V 1W | DC DC CONVERTER 2500V 1W |
| Series | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy |
| Packaging | Bulk | Bulk | Bulk | Bulk |
