2 INCH-G-MV-MINI

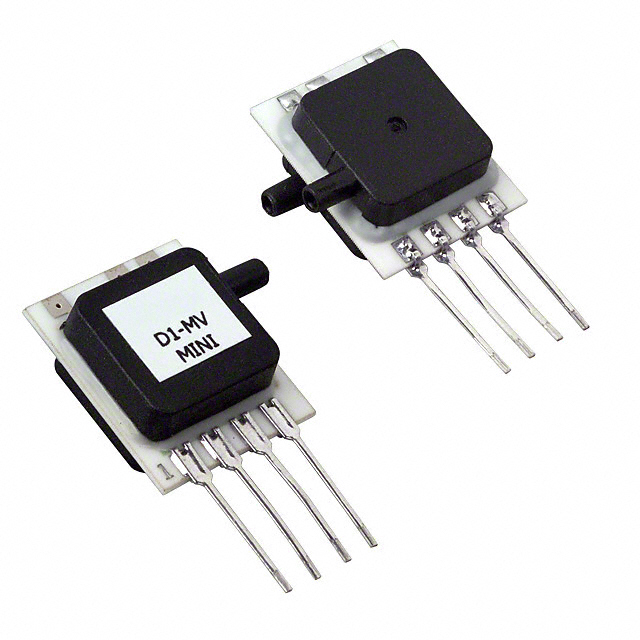

lmages are for reference only.2 INCH-G-MV-MINI
SENSOR 0.07PSIG 0.08" .01V
Datasheet4-SIP Module
60,467 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 0.07PSI (0.5kPa) Vented Gauge Male - 0.08" (2.03mm) Tube, Dual 0 mV ~ 10 mV (12V) 4-SIP Module
2 INCH-G-MV-MINI
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | MDCX |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | G-MV-MINI |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 0.07PSI (0.5kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 10 mV (12V) |
| Accuracy | ±0.25% |
| Voltage - Supply | 16V |
| Port Size | Male - 0.08" (2.03mm) Tube, Dual |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | - |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|
| Part Number | 2 INCH-G-MV-MINI | 2 INCH-D1-4V-MINI | 2 INCH-D1-MV-MINI | 2 INCH-D2-4V-MINI |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | SENSOR 0.07PSIG 0.08" .01V | SENSOR 0.07PSID 4SIP | SENSOR 0.07PSID 0.08" .01V | SENSOR 0.07PSID 4SIP |
| Series | MDCX | MAMP | MDCX | MAMP |
| Packaging | Bulk | Bulk | Bulk | Bulk |
