Product CatalogPart Number
2009891110
Manufacturer
MolexDescription
CONN HEADER SMD 10POS 1.27MM
Datasheet
DatasheetPackage
-
In Stock
96,035 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
2009891110
2009891110
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Surface Mount 10 position 0.050" (1.27mm)
Quick Inquiry
2009891110
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Molex |
| Series | Slim-Grid 200989 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.280" (7.10mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Pick and Place |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | 125V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Applications | Automotive, General Purpose, Telecommunications |
| Base Product Number | 200989 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

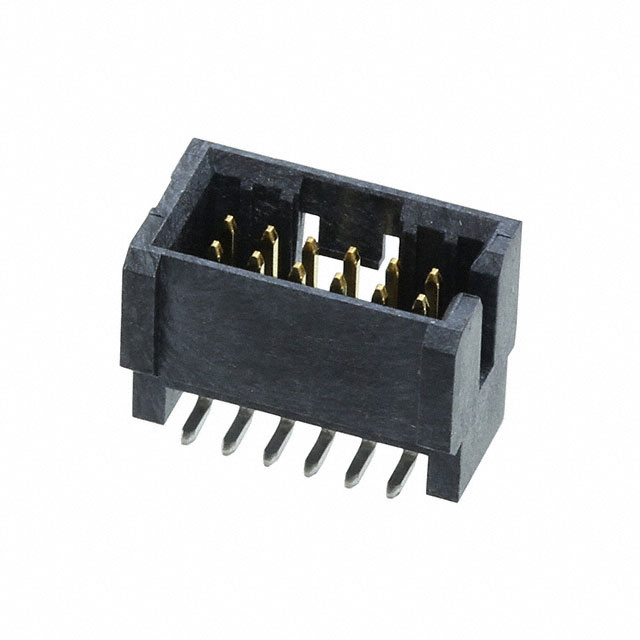

| Part Number | 2009891112 | 2009891116 | 2009891004 | 2009891010 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HEADER SMD 12POS 1.27MM | CONN HEADER SMD 16POS 1.27MM | CONN HEADER SMD 4POS 1.27MM | CONN HEADER SMD 10POS 1.27MM |
| Series | Slim-Grid 200989 | Slim-Grid 200989 | Slim-Grid 200989 | Slim-Grid 200989 |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
2009890004
Molex
2009890006
Molex
2009890008
Molex
2009890010
Molex
2009890012
Molex
2009890014
Molex
2009890016
Molex

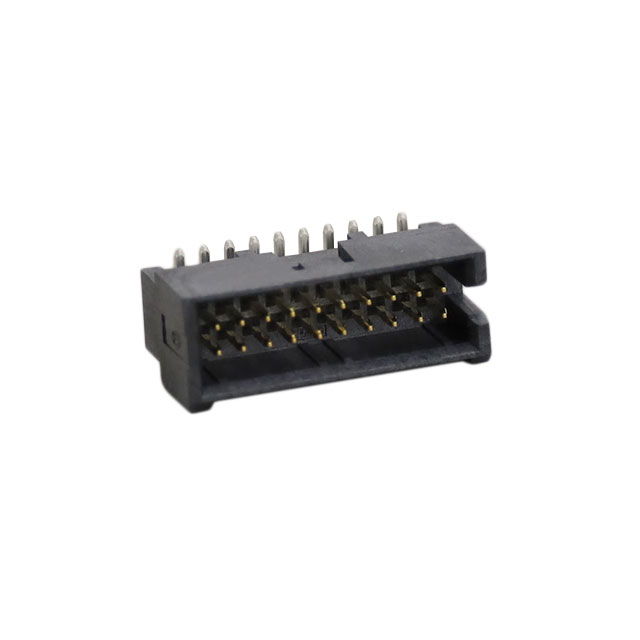

2009890020
Molex

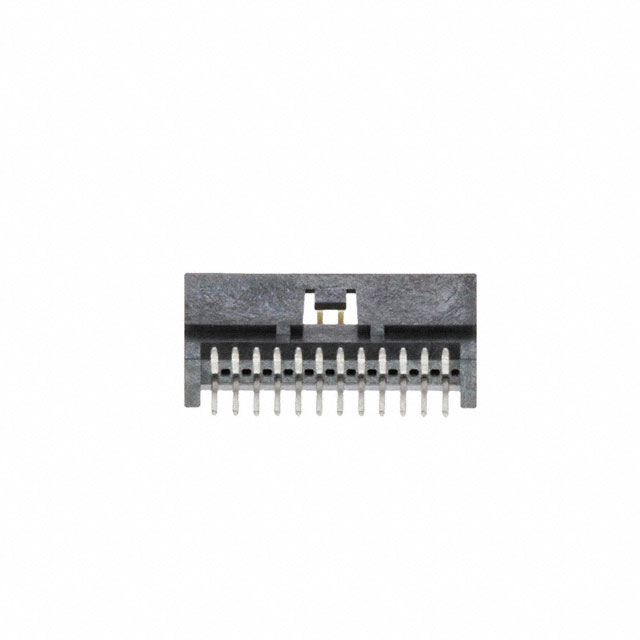

2009890024
Molex
2009890106
Molex

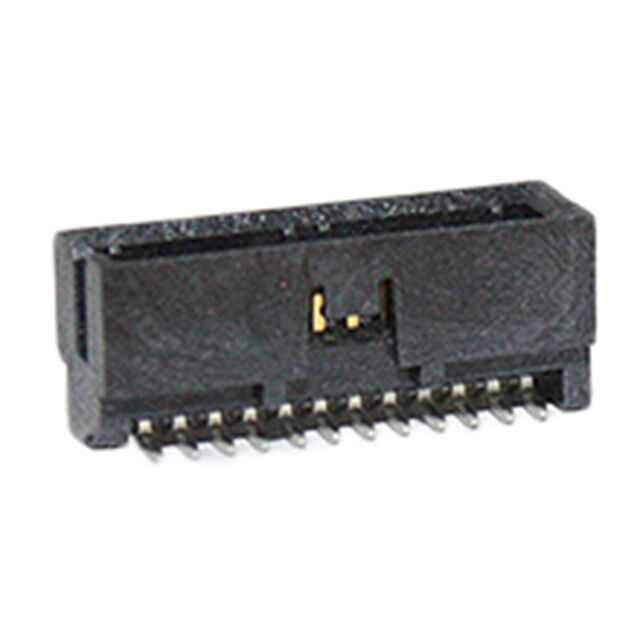

2009890108
