820 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
200MXG820MEFCSN30X25
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Rubycon |
| Series | MXG |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.04 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.06 A @ 10 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
|
 |
 |

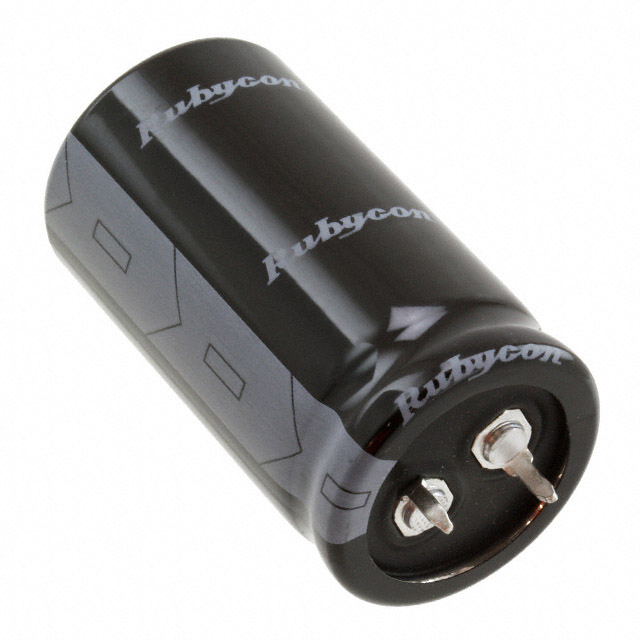

| Part Number | 200MXG820MEFCSN22X45 | 200MXG820MEFCSN22X45 | 200MXG820MEFCSN25X35 | 200MXC1000MEFC35X30 |
| Manufacturer | Rubycon | Rubycon | Rubycon | Rubycon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | CAP ALUM 820UF 20% 200V SNAP TH | CAP ALUM 820UF 20% 200V SNAP TH | CAP ALUM 820UF 20% 200V SNAP TH | CAP ALUM 1000UF 20% 200V SNAP TH |
| Series | Rubycon | Rubycon | Rubycon | Rubycon |
| Packaging | Bulk | Bulk | Bulk | Bulk |
