200USG680MEFCSN25X30
lmages are for reference only.Payment Methods
Delivery Services
680 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
200USG680MEFCSN25X30
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Rubycon |
| Series | USG |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.68 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.02 A @ 10 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

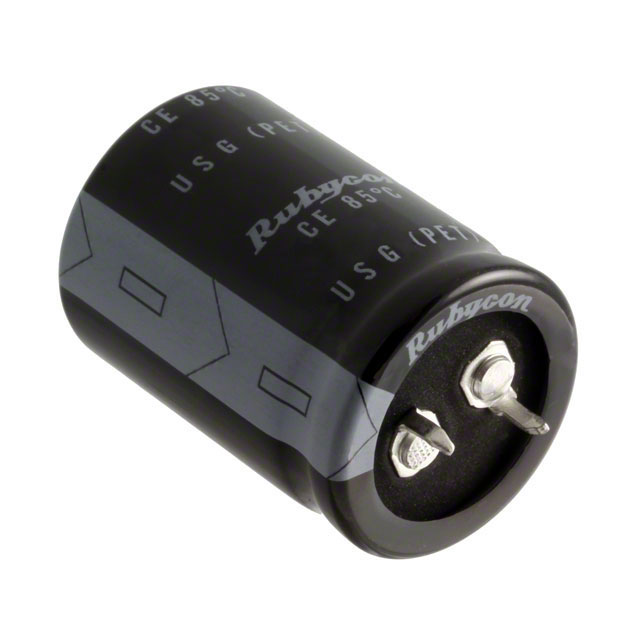

| Part Number | 200USG680MEFCSN20X40 | 200USG680MEFC20X40 | 200USG680MEFC22X35 | 200USG680MEFC25X30 |
| Manufacturer | Rubycon | Rubycon | Rubycon | Rubycon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 680UF 20% 200V SNAP TH | CAP ALUM 680UF 20% 200V SNAP TH | CAP ALUM 680UF 20% 200V SNAP TH | CAP ALUM 680UF 20% 200V SNAP TH |
| Series | Rubycon | Rubycon | Rubycon | Rubycon |
| Packaging | Bulk | Bulk | Bulk | Bulk |
