Product CatalogPart Number
2035551016
Manufacturer
MolexDescription
CP65 WTB HDR RA TH 0 BLUE 6CKT
Datasheet
DatasheetPackage
-
In Stock
87,698 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
2035551016
2035551016
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole, Right Angle 6 position 0.256" (6.50mm)
Quick Inquiry
2035551016
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Molex |
| Series | CP-6.5 203555 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Tab |
| Pitch - Mating | 0.256" (6.50mm) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.256" (6.50mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.150" (3.81mm) |
| Overall Contact Length | - |
| Insulation Height | 0.598" (15.19mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Board Guide, Solder Retention |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Red |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 600VAC/DC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | General Purpose, Industrial |
| Base Product Number | 203555 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 2035551012 | 2035551014 | 2035551022 | 2035551024 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ROHS3 Compliant | |||
| Description | CONN HEADER R/A 2POS | CP65 WTB HDR RA TH TUBE BLUE 4CK | CP65 WTB HDR RA TH REEL RED 2CKT | CP65 WTB HDR RA TH REEL BLUE 4CK |
| Series | CP-6.5 203555 | CP-6.5 203555 | CP-6.5 203555 | CP-6.5 203555 |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products

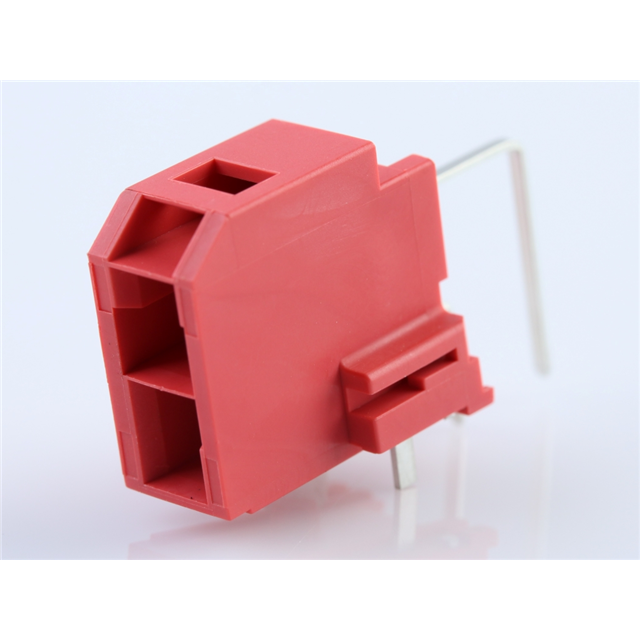

2035551012
Molex
2035551014
Molex

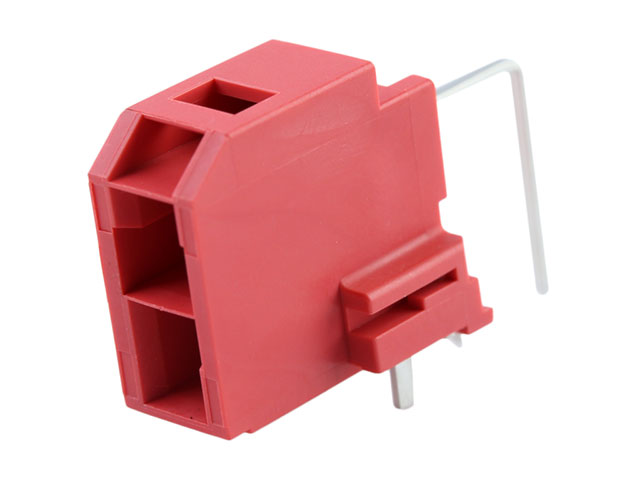

2035551022
Molex

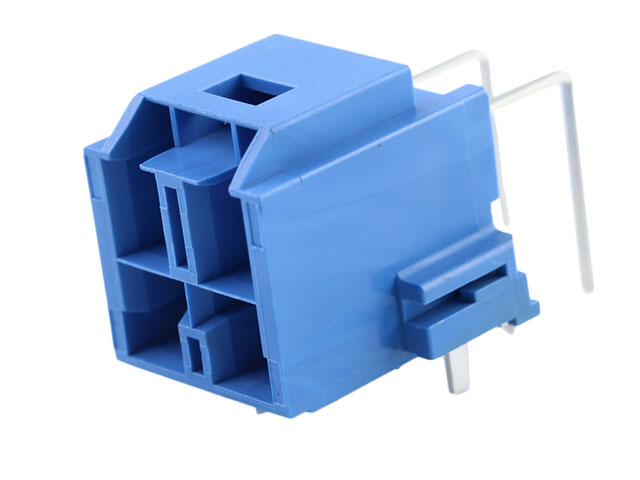

2035551024
Molex

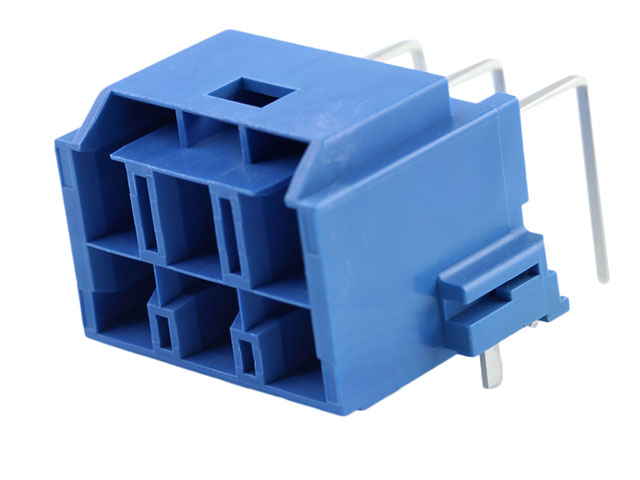

2035551026
Molex
2035551112
Molex

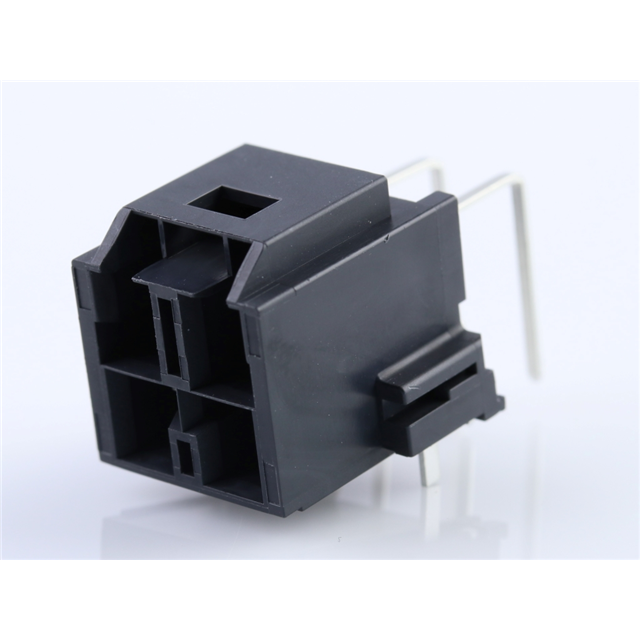

2035551114
Molex
2035551116
Molex

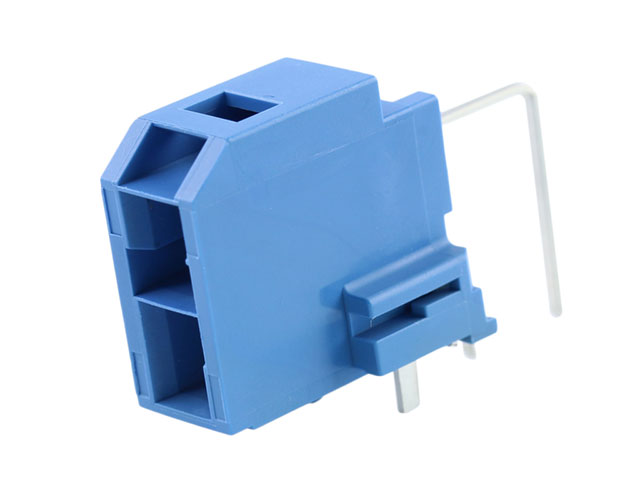

2035551122
Molex

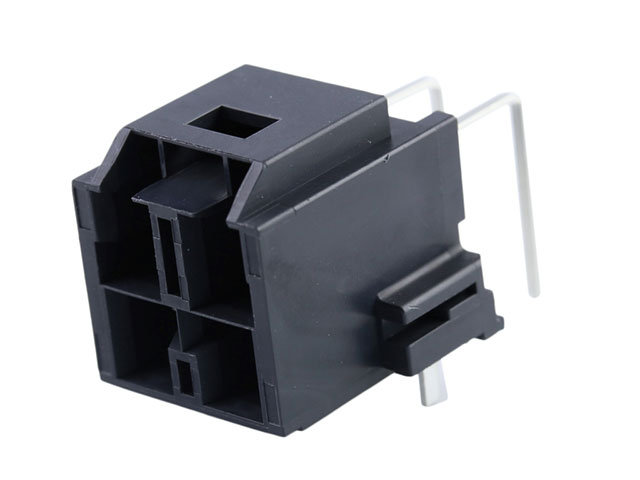

2035551124
Molex

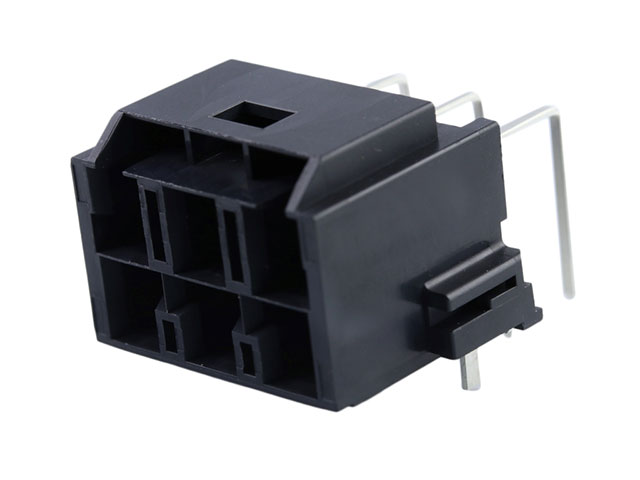

2035551126
Molex
2035551212
Molex
2035551214
Molex

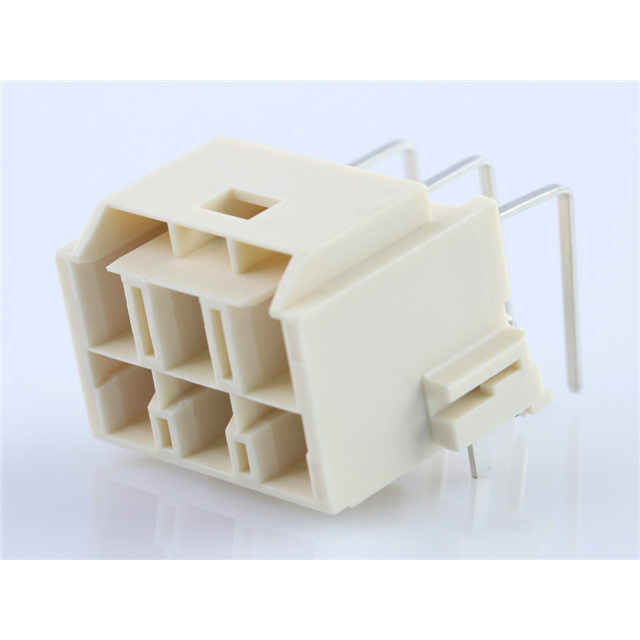

2035551216
Molex

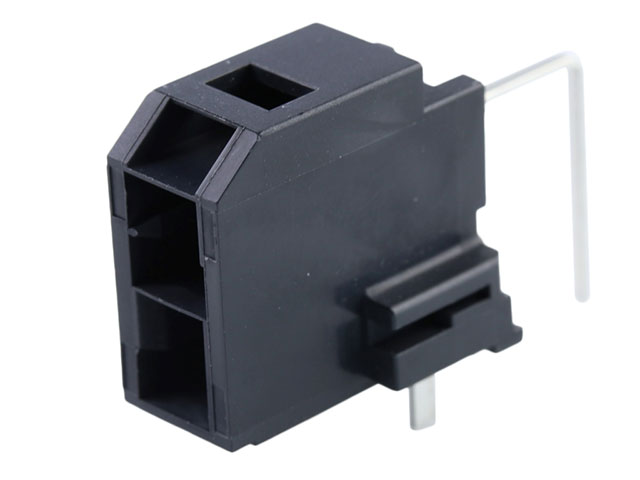

2035551222
Molex

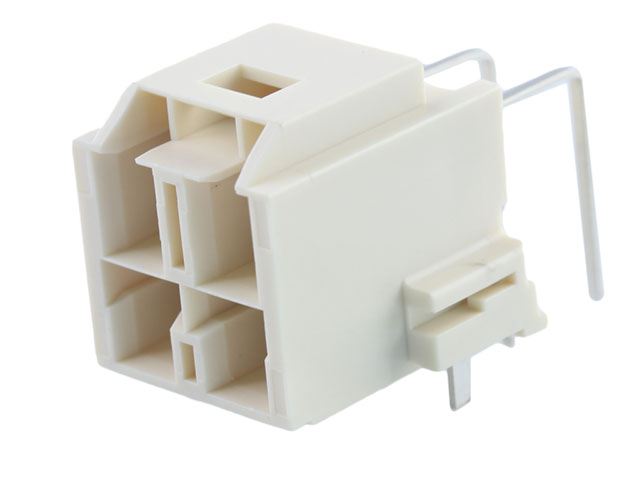

2035551224
Molex

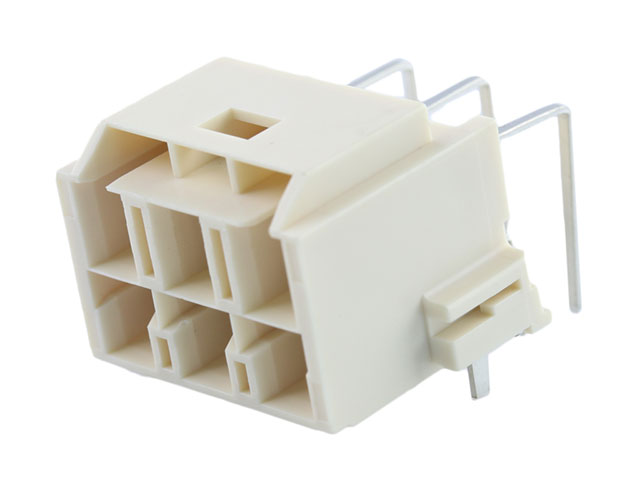

2035551226
