Product CatalogPart Number
2036-23-SMLF-H
Manufacturer
Bourns Inc.Description
GDT 230V 10KA 3 POLE SMD
Datasheet
DatasheetPackage
3-SMD Cylinder Square End
In Stock
88,230 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
2036-23-SMLF-H
2036-23-SMLF-H
lmages are for reference only.Payment Methods
Delivery Services
Gas Discharge Tube 230 V 10000A (10kA) ±25% 3 Pole Surface Mount
Quick Inquiry
2036-23-SMLF-H
Specifications
| Category | Circuit Protection - Gas Discharge Tube Arresters GDT - |
| Manufacturer | Bourns Inc. |
| Series | TRIGARD™ 2036-xx-SM-H |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Voltage - DC Spark Over (Nom) | 230 V |
| Impulse Discharge Current (8/20µs) | 10000A (10kA) |
| Tolerance | ±25% |
| Number of Poles | 3 |
| Fail Short | No |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD Cylinder Square End |
| Base Product Number | 2036 |
Parts with Similar Specifications
| Product Attribute | |
|
 |
|
| Part Number | 2036-23-SMLF-H | 2036-23-SMLF-H | 2036-23-SM-RP2LF-H | 2036-23-SM-RP2LF-H |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | GDT 230V 10KA 3 POLE SMD | GDT 230V 10KA 3 POLE SMD | GDT 230V 10KA 3 POLE SMD | GDT 230V 10KA 3 POLE SMD |
| Series | TRIGARD™ 2036-xx-SM-H | TRIGARD™ 2036-xx-SM-H | TRIGARD™ 2036-xx-SM-H | TRIGARD™ 2036-xx-SM-H |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products

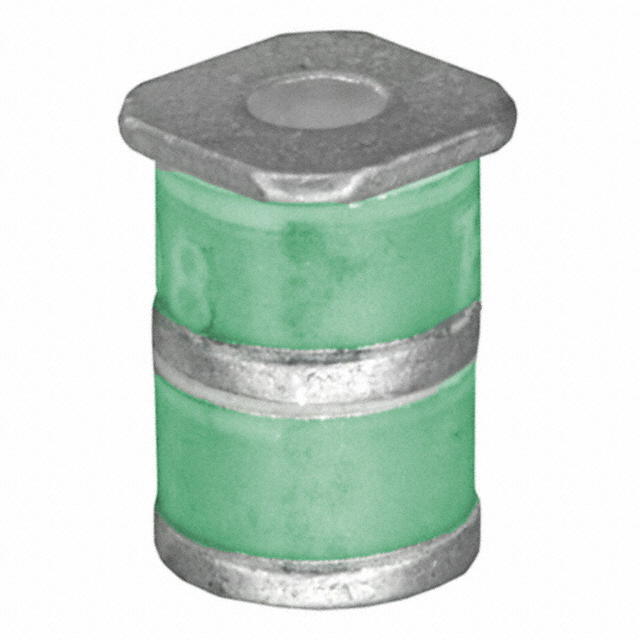

2036-07-SM-RP
