20IMX35D12D12-8
lmages are for reference only.20IMX35D12D12-8
DC DC CONVERTER 12V 12V 12V 35W
Datasheet19-DIP Module
12,307 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module, Conformal Coated DC DC Converter 4 Output 12V 12V 12V 650mA, 650mA, 650mA 9V - 36V Input
20IMX35D12D12-8
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bel Power Solutions |
| Series | Melcher IMX35 (35W) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module, Conformal Coated |
| Number of Outputs | 4 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | - |
| Current - Output (Max) | 650mA, 650mA, 650mA |
| Power (Watts) | 35 W |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 86% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 19-DIP Module |
| Size / Dimension | 3.00" L x 2.50" W x 0.41" H (76.2mm x 63.5mm x 10.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | 20IMX35 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | 20IMX35D12D12-8G | 20IMX35D12D12-8IG | 20IMX35D15D15-8 | 20IMX35D15D15-8G |
| Manufacturer | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

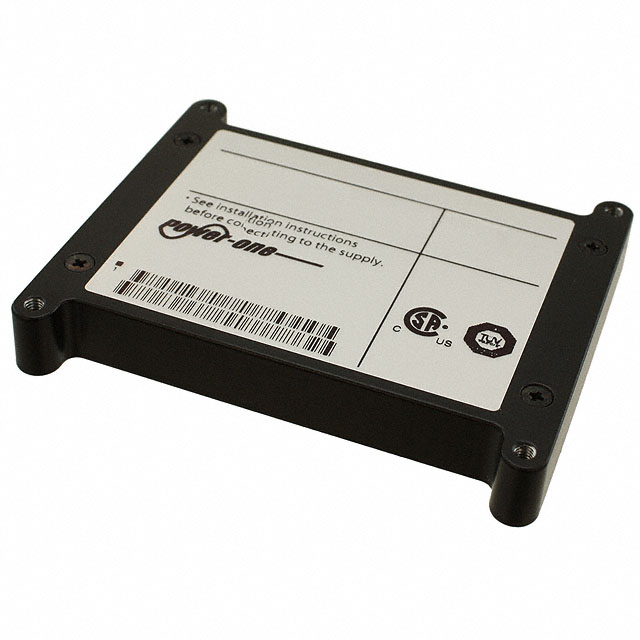

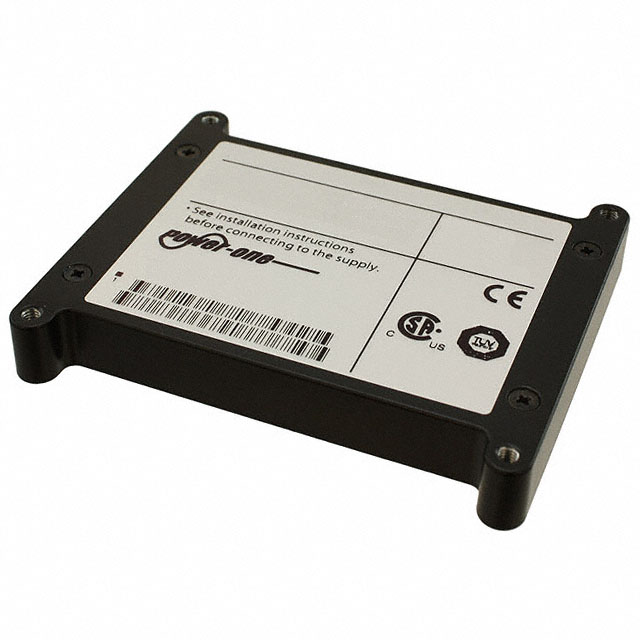

| Description | DC DC CONVERTER 12V 12V 12V 35W | DC DC CONVERTER 12V 12V 12V 35W | DC DC CONVERTER 15V 15V 15V 35W | DC DC CONVERTER 15V 15V 15V 35W |
| Series | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| Packaging | Bulk | Bulk | Bulk | Bulk |
