20SEP68M+T
lmages are for reference only.20SEP68M+T
CAP ALUM POLY 68UF 20% 20V TH
DatasheetRadial, Can
32,695 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
68 µF 20 V Aluminum - Polymer Capacitors Radial, Can 40mOhm 3000 Hrs @ 105°C
20SEP68M+T
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | OS-CON™, SEP |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.4 A @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | 20SEP |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

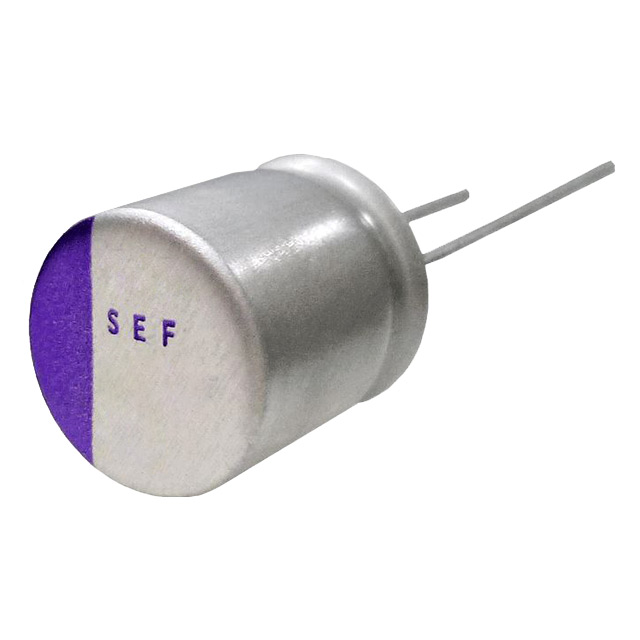

| Part Number | 20SEP68M | 20SEF120M | 20SEF180M | 20SEF390M |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 68UF 20% 20V TH | CAP ALUM POLY 120UF 20% 20V TH | CAP ALUM POLY 180UF 20% 20V TH | CAP ALUM POLY 390UF 20% 20V TH |
| Series | OS-CON™, SEP | OS-CON™, SEF | OS-CON™, SEF | OS-CON™, SEF |
| Packaging | Bulk | Bulk | Bulk | Bulk |
