2102080-4
lmages are for reference only.2102080-4
CONN RCPT 60POS 0.05 GOLD SMD
Datasheet-
47,594 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
60 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
2102080-4
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | Mezalok |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 60 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 6 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Insulation Color | Natural |
| Insulation Height | 0.315" (8.00mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 12mm |
| Ingress Protection | - |
| Features | Pick and Place |
| Current Rating (Amps) | - |
| Voltage Rating | 250VAC |
| Applications | - |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Contact Shape | Square |
| Contact Material | Beryllium Copper |
| Contact Finish Thickness - Post | - |
| Base Product Number | 2102080 |
| Product Attribute |  |
|
 |
 |

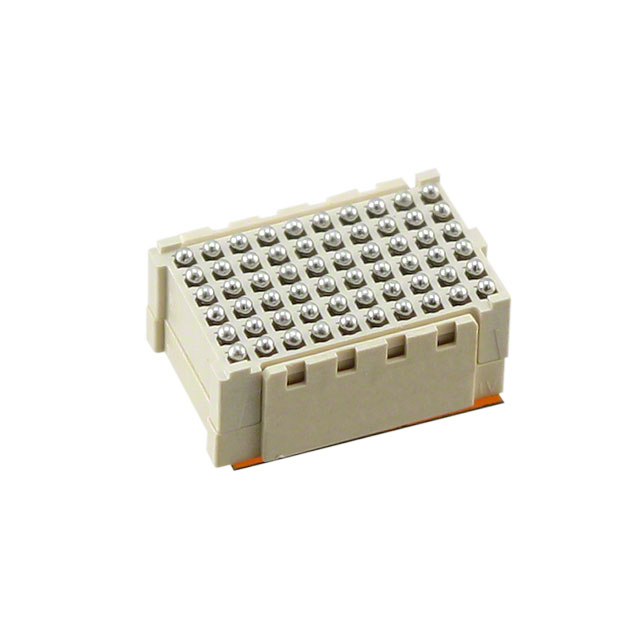

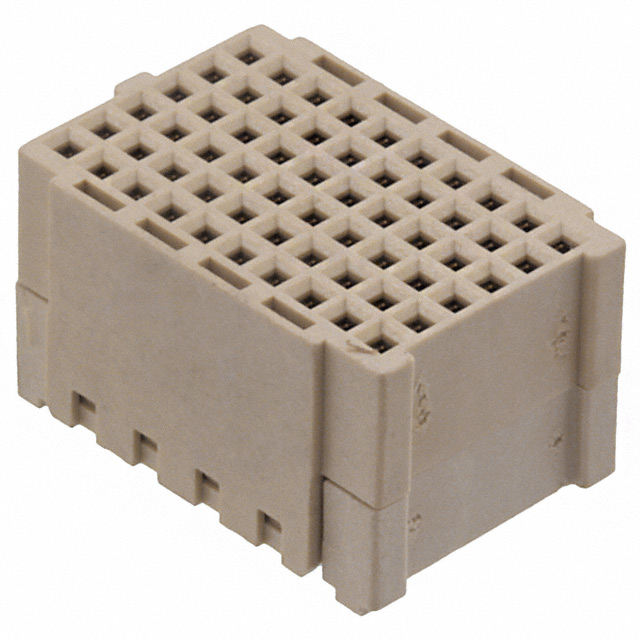

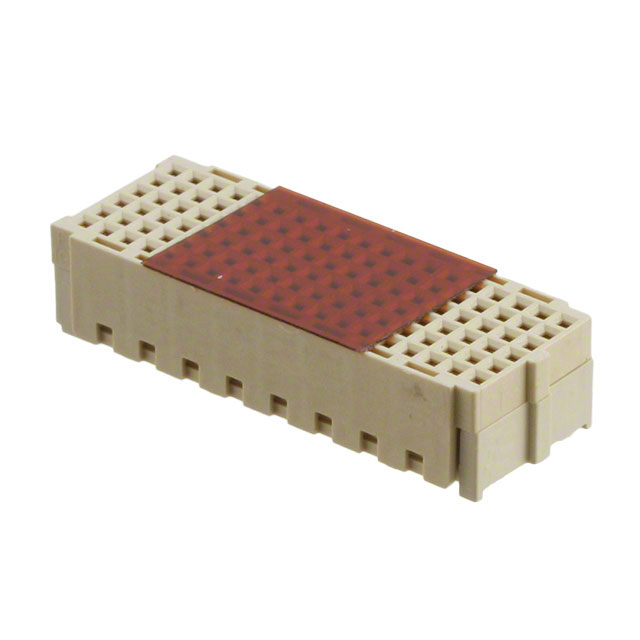

| Part Number | 2102080-1 | 2102080-2 | 2102080-3 | 2102061-1 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | CONN RCPT 60POS 0.05 GOLD SMD | CONN RCPT 60POS 0.05 GOLD SMD | CONN RCPT 60POS 0.05 GOLD SMD | CONN RCPT 114POS 0.05 GOLD SMD |
| Series | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
